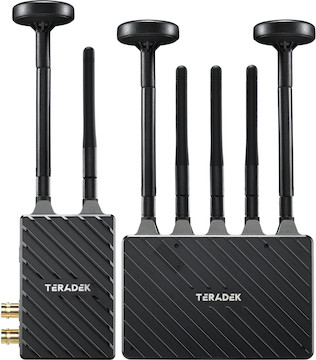

Teradek Bolt 4K LT MAX 3G-SDI/HDMI Kit

$736.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Bolt 4K LT MAX TX
1/4"-20 shoe adapter
Bolt 4K LT MAX RX
D-tap to Lemo cable
AC adapter
USB 2.0 A to Micro cable
5/8" to 1/4"-20 stand adapter
(7) 2dBi V antenna
(3) H antenna

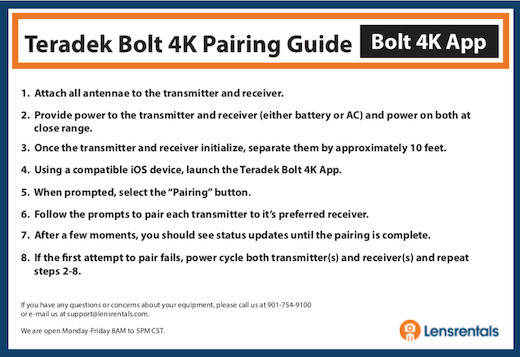

Bolt pairing guide

Resources

Teradek Bolt 4K LT MAX 3G-SDI/HDMI Kit

The Teradek Bolt 4K LT MAX 3G-SDI/HDMI Wireless Kit is part of a ground-up redesign of the Bolt wireless video transmission system with 4K compatibility and more intuitive app control. Key features include:

Transmit wireless, encrypted UHD 4K/30p video without delay up to 5000 feet line-of-sight
Accepts & outputs 3G-SDI & HDMI signals with cross conversion
Compatible with Bolt 4K 750, Bolt 4K 1500, & Bolt 4K Max products
Battery plates & batteries not included with this rental

Q & A

Does this rental include any mounting hardware?

We include one 5/8" receiver to 1/4-20 threaded stud stand adapter for the receiver and one 1/4-20 shoe mount adapter for the transmitter.

Does this rental include battery plates or batteries?

This rental does not include batteries or a way to attach batteries. If you need an option with an integrated battery plate, check out the V-Mount or Gold Mount versions of this product.

Is this compatible with previous Teradek Bolt Pro or XT models?

This receiver is only compatible with Teradek Bolt 4K products like the 750, 1500, and Max.

Specifications

Brand	Teradek
Item Type	Monitoring and Wireless Video
Monitoring Type	Wireless
Receiver	Outputs 3G-SDI HDMI Type A Dimensions 4.8 × 3.7 × 1.1″ Weight (RX Only) 10.3 oz Mount Compatibility ¼-20" Multicast Unlimited (broadcast mode)
System	Bolt 4K
Transmitter	Inputs 3G-SDI HDMI Type A Output 3G-SDI Loop-out Dimensions 4.1 × 2.4 × 1.3″ Weight (TX Only) 7.3 oz Mount Compatibility ¼-20" M3 (2x) Multicast Capable Unlimited (broadcast mode)
Video Processing	Color Sampling SDI: YCbCr 4:2:2 10-bit HDMI: 8/10-Bit 4:4:4/4:2:2 RGB Supported Formats 4Kp (HDMI only): 23.98/24/25/29.97/30 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080psf: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 50/59.94/60 480p: 59.94/60 576p: 50 480i(NTSC)/576i(PAL)
Wireless	Latency <0.001 sec Range Up to 5000 ft line of sight (under ideal conditions) Non-DFS Frequencies 5.19 ~ 5.23 GHz 5.755 ~ 5.795 GHz (US only) DFS Frequencies 5.27 ~ 5.67 GHz

Includes

Bolt 4K LT MAX TX
1/4"-20 shoe adapter
Bolt 4K LT MAX RX
D-tap to Lemo cable
AC adapter
USB 2.0 A to Micro cable
5/8" to 1/4"-20 stand adapter
(7) 2dBi V antenna
(3) H antenna
Bolt pairing guide

Specifications

Brand	Teradek
Item Type	Monitoring and Wireless Video
Monitoring Type	Wireless
Receiver	Outputs 3G-SDI HDMI Type A Dimensions 4.8 × 3.7 × 1.1″ Weight (RX Only) 10.3 oz Mount Compatibility ¼-20" Multicast Unlimited (broadcast mode)
System	Bolt 4K
Transmitter	Inputs 3G-SDI HDMI Type A Output 3G-SDI Loop-out Dimensions 4.1 × 2.4 × 1.3″ Weight (TX Only) 7.3 oz Mount Compatibility ¼-20" M3 (2x) Multicast Capable Unlimited (broadcast mode)
Video Processing	Color Sampling SDI: YCbCr 4:2:2 10-bit HDMI: 8/10-Bit 4:4:4/4:2:2 RGB Supported Formats 4Kp (HDMI only): 23.98/24/25/29.97/30 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080psf: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 50/59.94/60 480p: 59.94/60 576p: 50 480i(NTSC)/576i(PAL)
Wireless	Latency <0.001 sec Range Up to 5000 ft line of sight (under ideal conditions) Non-DFS Frequencies 5.19 ~ 5.23 GHz 5.755 ~ 5.795 GHz (US only) DFS Frequencies 5.27 ~ 5.67 GHz
