Teradek Bolt 4K LT MAX 3G-SDI/HDMI Transmitter

$402.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Teradek Bolt 4K LT MAX 3G-SDI/HDMI Transmitter
D-Tap to LEMO power cable
Teradek Bolt 4K H Antenna
Teradek Antenna 2dBi WiFi 2.4/5.8 GHz
Hot shoe to 1/4-20" adapter

Resources

Quick Start Guide

Reference Guide

Teradek app - Android

Teradek app - iOS

Teradek Bolt 4K LT MAX 3G-SDI/HDMI Transmitter

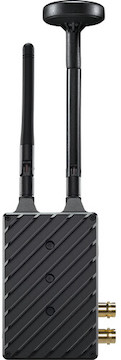

The Teradek Bolt 4K LT MAX 3G-SDI/HDMI Transmitter is a zero-delay wireless transmitter that can transmit lossless video up to 3000 feet line of sight. It’s compatible with the entire Bolt 4K line. Key features include:

Transmit wireless UHD 4K30p video up to 3000 feet
HDMI & SDI out; Rec. 2020 HDR 10-bit 4:2:2 color gamut
Compatible with Bolt 4K and 4K LT series devices
Battery plates and batteries not included with this rental

Q & A

Is this transmitter compatible with previous Teradek Bolt Pro or XT models?

This transmitter is only compatible with Teradek Bolt 4K and 4K LT series devices over the 5 GHz signal spectrum.

Does this rental include battery plates or batteries?

This rental does not include batteries or a way to attach batteries, but we do rent compatible receivers with pass-through Gold Mount or V-Mount plates.

Does this rental include the optional Bolt 4K panel antenna?

Yes, this rental includes the optional Bolt 4K panel antenna, which boosts its wireless transmission range from 3000 feet line of sight to 5000 feet line of sight.

Does this rental include any mounting hardware?

No, this rental doesn’t include any mounting hardware.

Specifications

Brand	Teradek
Environmental	IP Rating None Operating Temperature 32 to 104°F
Format Support	HDMI (8/10-Bit 4:4:4/4:2:2 RGB) Video Formats UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (4:2:2 YCC) Video Formats 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 Video Standard Compliance SMPTE 424M Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio Wireless Video Compression Uncompressed Timecode Support Yes
Inputs/Outputs	Antenna Ports 2x RP-SMA Female Video 1x HDMI Type A Input 1x BNC (3G-SDI) Input 1x BNC Loop Output Embedded Audio SDI: 2-Channel HDMI: 2-Channel Audio I/O None Power I/O 1x LEMO 2-Pin (28 VDC) Input Other I/O 1x Micro-USB Input Encryption 256-Bit AES
Item Type	Monitoring
Mfr. Model Number	10-2221
Monitoring Type	Wireless
Physical	Mounting 1x 1/4"-20 Female Material of Construction Aluminum, Plastic Dimensions (L x W x H) 4.1 × 2.4 × 1.3″ Weight 0.5 lb.
Power	DC Input Power 6 to 28 VDC Power Consumption 6x
System	Bolt 4K
Wireless	Wireless Range 3000’ / 914.4m (Line-of-Sight with standard antennas) Channel Bandwidth 40 MHz, 20 MHz Non-DFS Frequency Range US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequency Range US: 5.27 to 5.67 GHz Latency None RF Power 19 dBm Wi-Fi None

See All

Includes

Teradek Bolt 4K LT MAX 3G-SDI/HDMI Transmitter
D-Tap to LEMO power cable
Teradek Bolt 4K H Antenna
Teradek Antenna 2dBi WiFi 2.4/5.8 GHz
Hot shoe to 1/4-20" adapter

Specifications

Brand	Teradek
Environmental	IP Rating None Operating Temperature 32 to 104°F
Format Support	HDMI (8/10-Bit 4:4:4/4:2:2 RGB) Video Formats UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (4:2:2 YCC) Video Formats 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 Video Standard Compliance SMPTE 424M Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio Wireless Video Compression Uncompressed Timecode Support Yes
Inputs/Outputs	Antenna Ports 2x RP-SMA Female Video 1x HDMI Type A Input 1x BNC (3G-SDI) Input 1x BNC Loop Output Embedded Audio SDI: 2-Channel HDMI: 2-Channel Audio I/O None Power I/O 1x LEMO 2-Pin (28 VDC) Input Other I/O 1x Micro-USB Input Encryption 256-Bit AES
Item Type	Monitoring
Mfr. Model Number	10-2221
Monitoring Type	Wireless
Physical	Mounting 1x 1/4"-20 Female Material of Construction Aluminum, Plastic Dimensions (L x W x H) 4.1 × 2.4 × 1.3″ Weight 0.5 lb.
Power	DC Input Power 6 to 28 VDC Power Consumption 6x
System	Bolt 4K
Wireless	Wireless Range 3000’ / 914.4m (Line-of-Sight with standard antennas) Channel Bandwidth 40 MHz, 20 MHz Non-DFS Frequency Range US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequency Range US: 5.27 to 5.67 GHz Latency None RF Power 19 dBm Wi-Fi None
