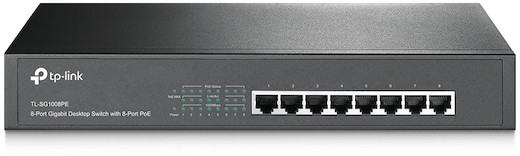

TP-LINK 8-Port Gigabit Ethernet PoE+ Switch

Resources

  • SG1008pe Support
  • TP-LINK 8-Port Gigabit Ethernet PoE+ Switch


    Expand your wired network with the TP-LINK 8-Port Gigabit Ethernet PoE+ Switch, a simple and affordable, unmanaged network switch. Key features include:

    • 8x Gigabit ethernet ports with PoE+

    • IEEE 802.3af/at compliant

    • Compact, energy efficient design

    • Simple to use and no software required

    Read More

    There is no hardware is included for the rack ears.

    Separately available accessories that may interest you:

    Specifications

    Audio Type

    Switching

    Brand

    TP-LINK

    Interface

    8 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX

    Item Type

    Switcher

    Performance

    Backbound Bandwidth

    • 16Gbps
    Buffer Size
    • 1.5Mbits
    Network Media
    • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

    Physical

    Dimensions ( W x D x H )

    • 11.6 × 7.1 × 1.7 in.
    Mounting
    • 13"
    • 19" standard rack

    Power Requirements

    Supply

    • 100-240VAC, 50/60Hz
    Max Consumption
    • 9.9W(no PoE load)
    • 144.4W(with 126W PoE load)
