Teradek Bolt 4K 750 12G-SDI/HDMI Kit (V-Mount)

$454.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Bolt 4K 750 Transmitter w/ Mounting Bracket
TX V-Mount plates
Bolt 4K 750 Receiver
RX V-Mount plates

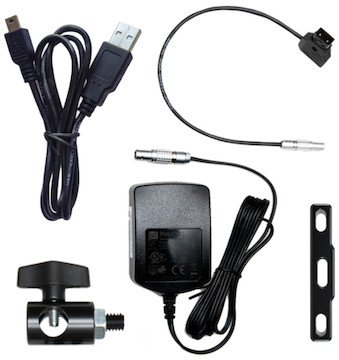

D-tap to Lemo power cable
AC adapter
USB 2.0 A to Micro cable
5/8" to 3/8-16" stand adapter
(9) Wireless antenna

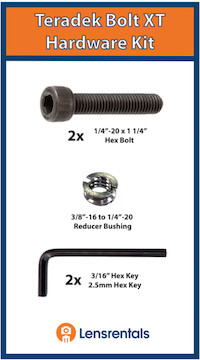

Hardware kit
Bolt pairing guide

Resources

Quick Start Guide

Manual

Teradek App (iOS)

Teradek Bolt 4K 750 12G-SDI/HDMI Kit (V-Mount)

The Teradek Bolt 4K 750 12G-SDI/HDMI Wireless V-Mount Kit is a ground-up redesign of the Bolt wireless video transmission system with 4K compatibility and more intuitive app control. Key features include:

Transmit encrypted wireless 4K/60p video up to 750’ line-of-sight
12G-SDI & HDMI 2.0 I/O signals with cross conversion
Compatible with Bolt 4K 750, Bolt 4K 1500, & Bolt 4K Max products
V-Mount batteries & charger not included

Q & A

Is this compatible with previous Teradek Bolt Pro or XT models?

This receiver is only compatible with Teradek Bolt 4K products like the 750, 1500, and Max.

Does this rental include V-Mount batteries?

This rental does not include V-Mount batteries or a charger, but they can be rented separately here.

Does this rental include any mounting hardware?

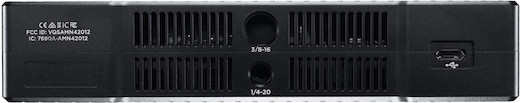

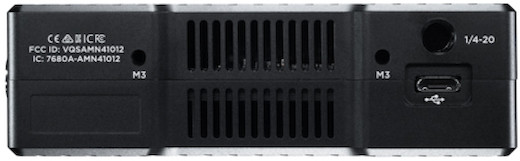

We include one 5/8" receiver to 3/8"-16 threaded stud stand adapter. The Rx features 1/4"-20 and 3/8"-16 threaded holes for mounting while the Tx has 1/4"-20 threaded holes and 1/4"-20 bolts for mounting.

Specifications

Brand	Teradek
Item Type	Monitoring and Wireless Video
Monitoring Type	Wireless
Receiver	Outputs 12G-SDI (2x) HDMI Type A (1x) Dimensions 5.47 × 4.41 × 1.06″ Weight (RX Only) 15.2 oz Mount Compatibility ¼-20" 3/8"-16 M3 (2x) Multicast Capable 6 (RX):1 (TX)
System	Bolt 4K
Transmitter	Inputs 12G-SDI (1x) HDMI Type A (1x) Output 12G-SDI Loop-out (1x) Dimensions 5.2 × 3.58 × 1.06″ Weight (TX Only) 12.6 oz Mount Compatibility ¼-20" 3/8-16" M3 (2x) Multicast Capable 1 (TX):6 (RX)
Video Processing	Color Sampling SDI: YCbCr 4:2:2 10-bit HDMI: RGB 4:4:4 8-bit Supported Formats 4Kp: 23.98/24/25/29.97/30/50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080psf: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 50/59.94/60 480p: 50 576p59.94/60 480i(NTSC)/576i(PAL) LUT Support Alexa Log C – 709 BMCC Film – 709 Log C – 709 SGamut – 709 Lut Display Options Full Screen Split Screen
Wireless	Latency <0.001 sec Range Up to 750’ line of sight (under ideal conditions) Non-DFS Frequencies 5.19 ~ 5.23 GHz 5.755 ~ 5.795 GHz (US only) DFS Frequencies 5.27 ~ 5.67 GHz

Includes

Bolt 4K 750 Transmitter w/ Mounting Bracket
TX V-Mount plates
Bolt 4K 750 Receiver
RX V-Mount plates
D-tap to Lemo power cable
AC adapter
USB 2.0 A to Micro cable
5/8" to 3/8-16" stand adapter
(9) Wireless antenna
Hardware kit
Bolt pairing guide

Specifications

Brand	Teradek
Item Type	Monitoring and Wireless Video
Monitoring Type	Wireless
Receiver	Outputs 12G-SDI (2x) HDMI Type A (1x) Dimensions 5.47 × 4.41 × 1.06″ Weight (RX Only) 15.2 oz Mount Compatibility ¼-20" 3/8"-16 M3 (2x) Multicast Capable 6 (RX):1 (TX)
System	Bolt 4K
Transmitter	Inputs 12G-SDI (1x) HDMI Type A (1x) Output 12G-SDI Loop-out (1x) Dimensions 5.2 × 3.58 × 1.06″ Weight (TX Only) 12.6 oz Mount Compatibility ¼-20" 3/8-16" M3 (2x) Multicast Capable 1 (TX):6 (RX)
Video Processing	Color Sampling SDI: YCbCr 4:2:2 10-bit HDMI: RGB 4:4:4 8-bit Supported Formats 4Kp: 23.98/24/25/29.97/30/50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080psf: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 50/59.94/60 480p: 50 576p59.94/60 480i(NTSC)/576i(PAL) LUT Support Alexa Log C – 709 BMCC Film – 709 Log C – 709 SGamut – 709 Lut Display Options Full Screen Split Screen
Wireless	Latency <0.001 sec Range Up to 750’ line of sight (under ideal conditions) Non-DFS Frequencies 5.19 ~ 5.23 GHz 5.755 ~ 5.795 GHz (US only) DFS Frequencies 5.27 ~ 5.67 GHz
