Teradek Bolt 4K LT 750 3G-SDI/HDMI Receiver (V-Mount)

$122.00
/
8 Day

Rental

Interested in purchasing?

Includes

  • Bolt 4K LT 750 Rx
  • Rx V-Mount plates
  • AC adapter
  • 5/8" to 1/4"-20 stand adapter
  • (5) Wireless antenna

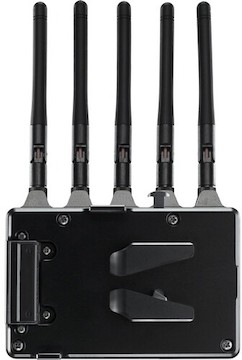

Teradek Bolt 4K LT 750 3G-SDI/HDMI Receiver (V-Mount)

The Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless V-Mount Receiver receives up to 4K30 video, and is the predecessor to the Bolt 6 LT. Key features include:

  • Add-on receiver for Teradek Bolt 4K LT systems

  • Transmit encrypted wireless 4K/30p video up to 750’ line-of-sight

  • V-Mount pass-thru plates and AC adapter included

  • V-Mount batteries and charger not included with this rental

Read More

Q & A

  • Does this rental include a Bolt 4K LT 750 transmitter?
  • Does this rental include V-Mount batteries?
    • This rental does not include V-Mount batteries or a charger, but they can be rented separately here.

  • Is this compatible with previous Teradek Bolt Pro or XT models?
    • This receiver is only compatible with Teradek Bolt 4K products like the 750, 1500, and Max.

  • Specifications

    Brand

    Teradek

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Physical

    Outputs

    • 3G-SDI (2x)
    • HDMI Type A (1x)
    Dimensions
    • 4.8 × 3.7 × 1.06″
    Weight (RX Only)
    • 10.3 oz
    Mount Compatibility
    • ¼-20"
    • 3/8"-16
    • M3 (2x)
    Multicast Capable
    • 6 (RX):1 (TX)

    System

    Bolt 4K

    Video Processing

    Color Sampling

    • SDI: YCbCr 4:2:2 10-bit
    • HDMI: RGB 4:4:4 8-bit
    Supported Formats
    • 4Kp: 23.98/24/25/29.97/30
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf: 23.98/24/25/29.97/30
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60
    • 480p: 50 576p59.94/60
    • 480i(NTSC)/576i(PAL)

    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 750’ line of sight (under ideal conditions)
    Non-DFS Frequencies
    • 5.19 ~ 5.23 GHz
    • 5.755 ~ 5.795 GHz (US only)
    DFS Frequencies
    • 5.27 ~ 5.67 GHz

    Includes

    • Bolt 4K LT 750 Rx
    • Rx V-Mount plates
    • AC adapter
    • 5/8" to 1/4"-20 stand adapter
    • (5) Wireless antenna

    Specifications

    Brand

    Teradek

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Physical

    Outputs

    • 3G-SDI (2x)
    • HDMI Type A (1x)
    Dimensions
    • 4.8 × 3.7 × 1.06″
    Weight (RX Only)
    • 10.3 oz
    Mount Compatibility
    • ¼-20"
    • 3/8"-16
    • M3 (2x)
    Multicast Capable
    • 6 (RX):1 (TX)

    System

    Bolt 4K

    Video Processing

    Color Sampling

    • SDI: YCbCr 4:2:2 10-bit
    • HDMI: RGB 4:4:4 8-bit
    Supported Formats
    • 4Kp: 23.98/24/25/29.97/30
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf: 23.98/24/25/29.97/30
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60
    • 480p: 50 576p59.94/60
    • 480i(NTSC)/576i(PAL)

    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 750’ line of sight (under ideal conditions)
    Non-DFS Frequencies
    • 5.19 ~ 5.23 GHz
    • 5.755 ~ 5.795 GHz (US only)
    DFS Frequencies
    • 5.27 ~ 5.67 GHz
