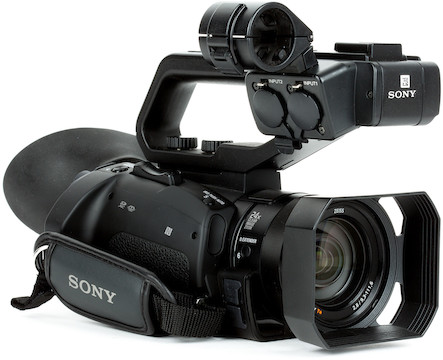

Sony PXW-X70 4K XDCAM

The Sony PXW-X70 4K XDCAM is an entry-level video camera that has a 4K upgrade installed. For a more full-featured camera at a comparable price, check out the Sony PXW-Z90V 4K HDR XDCAM. Key features include:

1.0" 14.2MP CMOS sensor
29-348mm F/2.8-4.5 12x optical zoom lens
XAVC QFHD, XAVC HD, and AVCHD codecs
4K UHD option installed with HD/3G-SDI out

These accessories are also available separately:

Specifications

Battery	Compatibility NP-FV70 (included) NP-FV100 Life 108 mins. (NP-FV70) 238 mins. (NP-FV100)
Brand	Sony
Camcorder Type	Prosumer
Camera Type	Camcorder
Dimensions	4.8 × 4.1 × 10.8 (inches)
Filter Diameter	62 mm

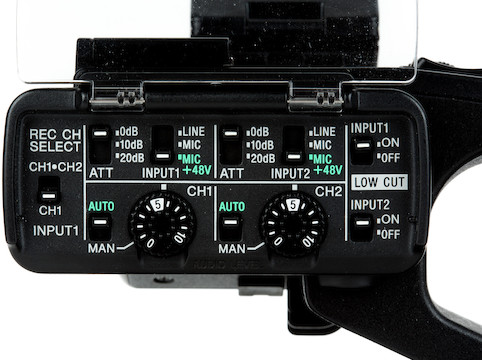

Inputs/Outputs	Audio Inputs 2x XLRs for audio input: 3-pin female; line, mic, mic +48 V selectable Audio Output 1x Stereo mini-jack for earphone output 1x Monitor speaker: monaural, 250 mW Video Outputs 1x 3G-SDI BNC 1x HDMI output type A Additional Inputs/Outputs 1x USB 2.0 (device), mini-B type 1x DC jack for DC input
Iris	f/2.8 – f/4.5, auto/manual selectable
Item Type	Camera
Lens Focal Length Equivalent	29 – 348mm
Memory Type	2x slots for SD memory cards
Mount	Fixed Lens
Sensor	1" Exmor R CMOS sensor
Video Formats	XAVC-L 4K (MPEG-4 AVC/H.264 4:2:0 Long-GOP VBR) and XAVC-L HD (MPEG-4 AVC/H.264 4:2:2 Long-GOP VBR)
