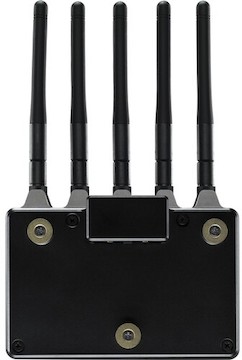

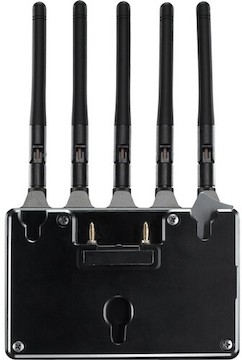

Teradek Bolt 4K LT 750 3G-SDI/HDMI Receiver (Gold Mount)

Teradek Bolt 4K LT 750 3G-SDI/HDMI Receiver (Gold Mount)


The Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless Gold Mount Receiver is an add-on receiver for the Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless Gold Mount Kit. Key features include:

  • Add-on receiver for Teradek Bolt 4K systems

  • Wireless UHD 4K/30p video transmission up to 750’ line-of-sight

  • Gold Mount pass-thru plates and AC adapter included

  • Gold Mount batteries not included with this rental

Read More

Specifications

Brand

Teradek

Item Type

Monitoring

Monitoring Type

Wireless

Physical

Outputs

  • 3G-SDI (2x)
  • HDMI Type A (1x)
Dimensions
  • 4.8 × 3.7 × 1.06″
Weight (RX Only)
  • 10.3 oz
Mount Compatibility
  • ¼-20"
  • 3/8"-16
  • M3 (2x)
Multicast Capable
  • 6 (RX):1 (TX)

System

Bolt 4K

Video Processing

Color Sampling

  • SDI: YCbCr 4:2:2 10-bit
  • HDMI: RGB 4:4:4 8-bit
Supported Formats
  • 4Kp: 23.98/24/25/29.97/30
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080psf: 23.98/24/25/29.97/30
  • 1080i: 50/59.94/60
  • 720p: 50/59.94/60
  • 480p: 50 576p59.94/60
  • 480i(NTSC)/576i(PAL)

Wireless

Latency

  • <0.001 sec
Range
  • Up to 750’ line of sight (under ideal conditions)
Non-DFS Frequencies
  • 5.19 ~ 5.23 GHz
  • 5.755 ~ 5.795 GHz (US only)
DFS Frequencies
  • 5.27 ~ 5.67 GHz
