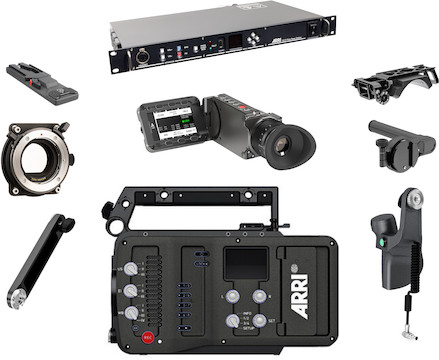

ARRI AMIRA Live ENG Broadcast SMPTE Kit (EF)

$4029.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Includes

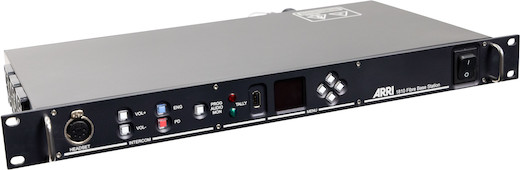

ARRI 1810U-12G SL Fiber Base Station

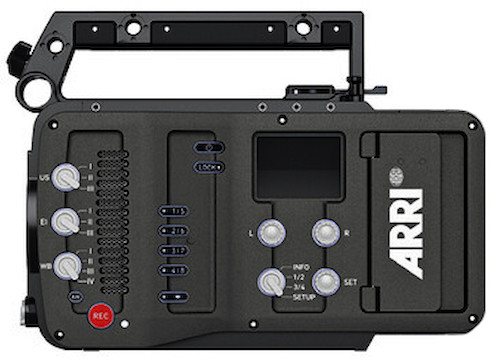

ARRI AMIRA Live with 1820-12G Fiber Camera Adapter

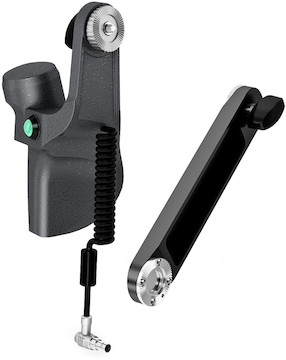

ARRI AMIRA Right Handgrip Set

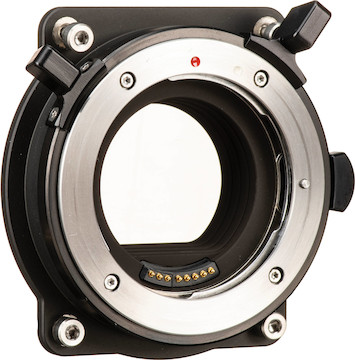

ARRI EF Lens Mount

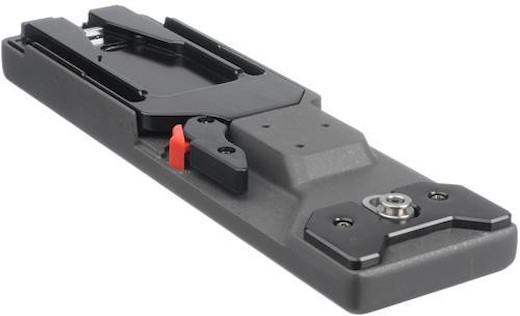

Sony VCT-14 Quick-Release Tripod Adapter

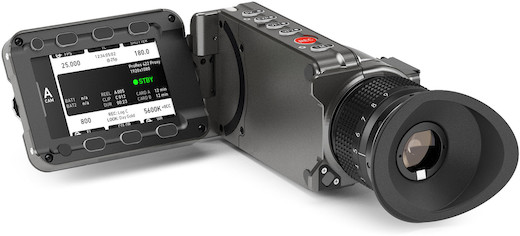

ARRI AMIRA Viewfinder MVF-1

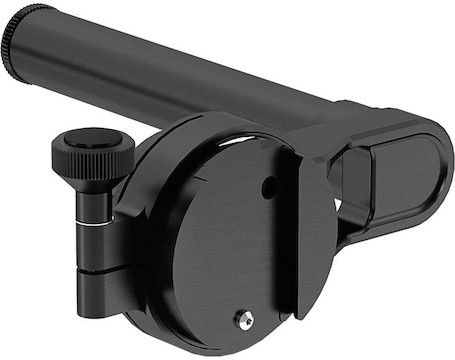

ARRI Viewfinder Cross Pipe

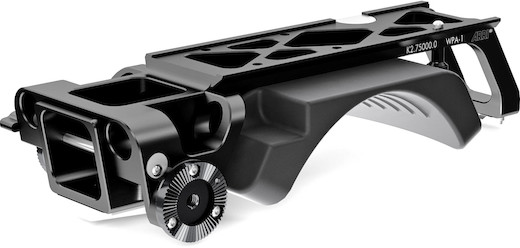

ARRI WPA-1 Wedge Plate Adapter

Resources

VCT-14 Manual

ARRI Tools

ARRI AMIRA Live ENG Broadcast SMPTE Kit (EF)

This ARRI AMIRA Live ENG Broadcast SMPTE Kit (EF) is a ARRI based package we assembled that consists of the necessary accessories for live broadcasting with the ARRI AMIRA Live with 1820-12G Fiber Camera Adapter. Feel free to click any of the highlighted links below for additional information on each product. Looking for a PL version of this kit? You can find it here.

The ARRI AMIRA Live ENG Broadcast SMPTE Kit (EF) includes:

ARRI AMIRA Live with 1820-12G Fiber Camera Adapter
ARRI 1810U-12G SL Fiber Base Station
ARRI EF Lens Mount
Sony VCT-14 Quick-Release Tripod Adapter
ARRI AMIRA Right Handgrip Set
ARRI Viewfinder Cross Pipe
ARRI WPA-1 Wedge Plate Adapter
ARRI AMIRA Viewfinder MVF-1

Q & A

Can I record onto the internal CFast 2.0 cards with AMIRA Live during a live production?

Yes, AMIRA Live supports all functions supported with the normal AMIRA. You can record locally to the recording media in parallel, also using a different frame rate or in Log C.

What about camera control?

Camera settings are accessible through the camera’s ad-hoc Wi-Fi network, allowing you to remotely control the full AMIRA menu system from a mobile device or computer. This kit includes the Arri Amira MVF-1 Viewfinder to control the AMIRA Live. The camera is also controllable with industry-standard Sony Remote Control Panels.

What else will I need?

You’ll need a SMPTE 311M LEMO cable like the Camplex SMPTE 311M / 304M Hybrid Fiber Cable – 50 ft or Camplex SMPTE 311M / 304M Hybrid Fiber Cable – 250 ft to power the camera and facilitate data transfer.

Is this product simple to use?

If you’re unfamiliar with the system, you’ll need quite a bit of dedicated one-on-one time with it. We recommend anticipating at least a full day of prepping the system for use.
Before we ship it off to you, we assemble the kit as much as we possibly can, but there will be some assembly and camera configurations required once your receive your parcel.

Specifications

Audio Recording	4-Channel 24-Bit 48 kHz LPCM Audio
Brand	ARRI
Camera Type	Camcorder
Dynamic Range	14 stops
ISO Range	160 to 3200
Inputs/Outputs	Video 1 x D-Sub 24W7 Input/Output 2 x BNC (6G-SDI) Output Audio 2 x XLR 3-Pin Mic/Line (48 V Phantom Power) Input 1 × 1/8" / 3.5 mm TRS Stereo Headphone Output 1 x XLR 5-Pin Mic/Line (48 V Phantom Power) Input Power 1 x LEMO 8-Pin (10.5 to 34VDC) Input 1 x Fischer 3-Pin (24VDC) Output 1 x LEMO 2-Pin (12VDC) Output 1 x Hirose 4-Pin (12VDC) Output 1 x LEMO 6-Pin (24VDC) Output Other 1 x BNC (Timecode) Input/Output 1 x BNC (Return) Return Input/Output 1 x LEMO 6-Pin Control Input/Output 1 x Hirose 12-Pin Data 1 x RJ45 (Ethernet) Control/Data 2 x Unspecified USB (USB 2.0) Data
Internal Video Recording Modes	ARRIRAW 2880 × 1620 from 0.75 to 48.00 fps MPEG-2/ProRes 422/ProRes 422 HQ/ProRes 422LT/ProRes 4444/ProRes 4444XQ 3840 × 2160 from 0.75 to 59.94 fps 3200 × 1800 from 0.75 to 59.94 fps 2048 × 1152 from 0.75 to 200 fps 1920 × 1080 from 0.75 to 200 fps
Item Type	Camera
Memory Card Slot	Dual Slot: CFast (CFast 2.0)
Mount	Canon EF
Package Type	ARRI Video
Sensor	26.4 × 14.85 mm (Super35) CMOS
Shutter Type	Electronic rolling shutter

See All

Includes

ARRI 1810U-12G SL Fiber Base Station
ARRI AMIRA Live with 1820-12G Fiber Camera Adapter
ARRI AMIRA Right Handgrip Set
ARRI EF Lens Mount
Sony VCT-14 Quick-Release Tripod Adapter
ARRI AMIRA Viewfinder MVF-1
ARRI Viewfinder Cross Pipe
ARRI WPA-1 Wedge Plate Adapter

Specifications

Audio Recording	4-Channel 24-Bit 48 kHz LPCM Audio
Brand	ARRI
Camera Type	Camcorder
Dynamic Range	14 stops
ISO Range	160 to 3200
Inputs/Outputs	Video 1 x D-Sub 24W7 Input/Output 2 x BNC (6G-SDI) Output Audio 2 x XLR 3-Pin Mic/Line (48 V Phantom Power) Input 1 × 1/8" / 3.5 mm TRS Stereo Headphone Output 1 x XLR 5-Pin Mic/Line (48 V Phantom Power) Input Power 1 x LEMO 8-Pin (10.5 to 34VDC) Input 1 x Fischer 3-Pin (24VDC) Output 1 x LEMO 2-Pin (12VDC) Output 1 x Hirose 4-Pin (12VDC) Output 1 x LEMO 6-Pin (24VDC) Output Other 1 x BNC (Timecode) Input/Output 1 x BNC (Return) Return Input/Output 1 x LEMO 6-Pin Control Input/Output 1 x Hirose 12-Pin Data 1 x RJ45 (Ethernet) Control/Data 2 x Unspecified USB (USB 2.0) Data
Internal Video Recording Modes	ARRIRAW 2880 × 1620 from 0.75 to 48.00 fps MPEG-2/ProRes 422/ProRes 422 HQ/ProRes 422LT/ProRes 4444/ProRes 4444XQ 3840 × 2160 from 0.75 to 59.94 fps 3200 × 1800 from 0.75 to 59.94 fps 2048 × 1152 from 0.75 to 200 fps 1920 × 1080 from 0.75 to 200 fps
Item Type	Camera
Memory Card Slot	Dual Slot: CFast (CFast 2.0)
Mount	Canon EF
Package Type	ARRI Video
Sensor	26.4 × 14.85 mm (Super35) CMOS
Shutter Type	Electronic rolling shutter

See All

Resources

VCT-14 Manual

ARRI Tools

Reviews

See Reviews

Lensrentals.com offers rentals ranging in length from 1 to 90 days. The shopping cart will automatically update the quoted price as you adjust the length of your rental. Our most common rental periods are shown below:

No Coverage

Lenscap

LenscapPlus

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$498.00	$2843.00	$3341.00	$1113.67
4 days	$534.00	$3041.00	$3575.00	$893.75
7 days	$712.00	$4029.00	$4741.00	$677.29
10 days	$961.00	$5412.00	$6373.00	$637.30
14 days	$1246.00	$6993.00	$8239.00	$588.50
21 days	$1673.00	$9364.00	$11037.00	$525.57
30 days	$2100.00	$11735.00	$13835.00	$461.17
45 days	$2741.00	$15292.00	$18033.00	$400.73
60 days	$3204.00	$17861.00	$21065.00	$351.08
90 days	$4130.00	$22999.00	$27129.00	$301.43

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$454.00	$2843.00	$3297.00	$1099.00
4 days	$487.00	$3041.00	$3528.00	$882.00
7 days	$649.00	$4029.00	$4678.00	$668.29
10 days	$876.00	$5412.00	$6288.00	$628.80
14 days	$1136.00	$6993.00	$8129.00	$580.64
21 days	$1525.00	$9364.00	$10889.00	$518.52
30 days	$1915.00	$11735.00	$13650.00	$455.00
45 days	$2499.00	$15292.00	$17791.00	$395.36
60 days	$2921.00	$17861.00	$20782.00	$346.37
90 days	$3764.00	$22999.00	$26763.00	$297.37

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$2843.00	$947.67
4 days	$3041.00	$760.25
7 days	$4029.00	$575.57
10 days	$5412.00	$541.20
14 days	$6993.00	$499.50
21 days	$9364.00	$445.90
30 days	$11735.00	$391.17
45 days	$15292.00	$339.82
60 days	$17861.00	$297.68
90 days	$22999.00	$255.54
