Pro ISO Upgrade. The Blackmagic Design ATEM SDI Pro ISO Switcher includes all the features found in the ATEM SDI, plus built-in streaming and recording for up to 5 individual channels.

ISO Recording. This switcher can record the program output of the switcher along with 4 SDI ISO inputs to compatible USB Type C drives. The media pool, graphics, and transitions are saved into a DaVinci Resolve .drp file for quick editing after the live event is over. Embedded audio is recorded to separate 24-bit 48KHz WAV files for clean remixing of audio.

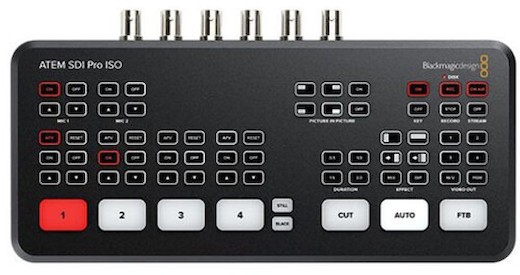

Simple Four-Channel Switching. The Blackmagic Design ATEM SDI Pro ISO is a compact, tactile solution for switching up to four SDI signals. The switcher is capable of ingesting up to 1080/60p video, and it can send a 1080/60p program feed to a computer via USB Type-C.

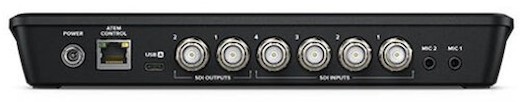

Dual Audio Inputs. On the rear of the unit, you’ll find two 3.5mm mic inputs for mixing in auxiliary audio alongside the four SDI inputs’ audio signals. Fairlight audio enhancements include compression, gating, limiting, and a six band EQ for tweaking each input.

Upstream Keyer & Transitions. An upstream keyer allows for luma, linear, pattern, and chroma keying while a built-in suit of transitions gives you the ability to cut, mix, dip, wipe, push, spin, squeeze, and swoosh your videos from one into the other.

Downstream Keyer. The downstream keyer allows you to add logos and titles from a built-in media pool to the program output. Use of this feature will require you to connect the switcher to a computer running ATEM software v8.1 or later. PNG, TGA, BMP, GIF, JPEG, and TIFF files are all compatible with the media player.
