Canon CR-N700 Auto-Tracking PTZ Kit w/ RC-IP1000 Controller

$1044.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Resources

Switch Manual

Camera Installation Guide

Auto-Tracking App Manual

Remote Camera Control App Manual

Controller Manual

Canon CR-N700 Auto-Tracking PTZ Kit w/ RC-IP1000 Controller

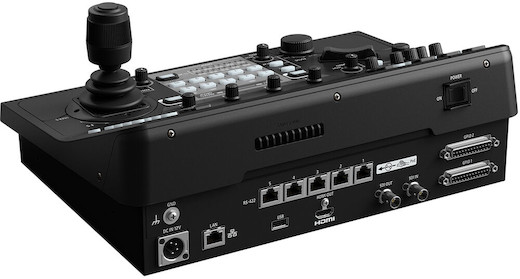

Get a head start on your meeting or presentation with the Canon CR-N700 Auto-Tracking PTZ Kit w/ RC-IP1000 Controller! This basic, novice-friendly bundle is based around the Canon CR-N700 4K PTZ Camera, and provides you with a handful of accessories to get you rolling, including the versatile RC-IP1000 Advanced PTZ Controller. Feel free to click any of the highlighted links below for additional information and specifications!

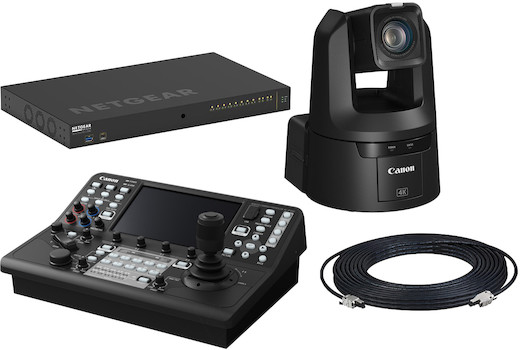

The Canon CR-N700 Auto-Tracking PTZ Kit w/ RC-IP1000 Controller includes:

Q & A

Is the ethernet cable comparable in size and weight to common ethernet cables?

This is the Terminator of ethernet cables. You’ll get unrelenting peak performance, but the tradeoff is bulk and an uncooperative working relationship.

I lost the IP address or login information. What can I do?

If you lost the IP address or login information, follow these steps:
1. Press and hold the Reset button on the back of the camera.
2. Power on the camera.
3. Wait for the front LED to blink.
4. Release the Reset button.
5. Wait ~4 minutes for the camera to complete its boot-up sequence.

How do I monitor camera view?

You can monitor camera view via webUI, SDI / HDMI, and compatible third-party software.
This camera uses NDI HX2 protocol, so we recommend making sure all third-party software is up to date.

How do I access the camera upon initial startup?

Upon initial startup, you must follow these steps:
1. Access the camera via the webUI. The IP address is 192.168.100.1 and the Subnet is 255.255.255.0
2. Assign an account name and password.
3. Reboot the camera to log back in. You’ll be prompted to enter the initial network settings.

You can avoid advanced configuration by saving the prompted network page and using the Canon Camera Search Tool for macOS / Windows.

Specifications

Brand	Canon
Camera	Sensor Resolution Actual: 13.4 Megapixel Effective: 8.29 Megapixel Shutter Speed 1/3 to 1/2000 Second Max Digital Zoom 30x (in 1080p) Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Control	Presets 100 (including Home position) Movement Speed Pan: 0.1 to 100°/sec Tilt: 0.1 to 100°/sec Movement Range Pan: 34° (-170 to 170°) Tilt: 120° (-30 to 90°) Supported Control Protocols IP NDI VISCA
Environmental	Operating Temperature 32 to 104°F Storage Temperature 32 to 104°F Operating Humidity 10 to 90% (Non-Condensing) Storage Humidity 10 to 90% (Non-Condensing)

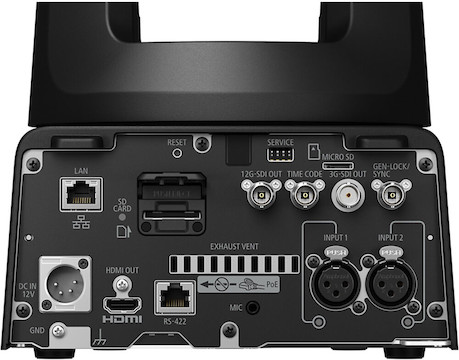

Interface	Communication Control LAN, Wi-Fi, Serial, IR Network Terminal LAN x1, RJ45, 1000Base-T 12G/3G-SDI OUT Terminal BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ohm SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST 272, SMPTE ST 299 compliant Embedded audio, Timecode (VITC/LTC) Gen-Lock Terminal BNC jack x1, 1.0 Vp-p/75 Ohm Timecode Terminal BNC jack x1, 1.3 Vp-p/50 Ohm or less RS-422 Terminal RJ45 connector x1 Audio Input 1 / Input 2 Terminals INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ohm/Att.: 20 dB Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k Ohm or more Supply Voltage: 48 V DC (Bias resistance: 6.8 k Ohm) Mic Terminal 3.5mm stereo mini-jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k Ohm) Media Slot SD Card x1, microSD card slot x1 – future expansion, recording currently unavailable (February 2023)
Item Type	Package
Lens	Optical Zoom Ratio 15x Focal Length 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm) Field of View Horizontal: 73 to 5.7° Vertical: 45.2 to 3.2° Maximum Aperture f/2.8 to 4.5 Focus Control Autofocus Manual Focus Embedded Audio HDMI/SDI
Package Type	PTZ Video
Physical	Dimensions (W x H x D) 7.9 × 10.6 × 8.2″ (Excluding protrusions) Weight 9.5 lb.
Power	PoE Support PoE++ 802.3bt
Video Output	G-SDI 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720×576: 50.00i (4:2:2 10-bit) 720×480: 59.94i (4:2:2 10-bit) 12G-SDI 3840 × 2160: 59.94p/50.00p/29.97p/25.00P/23.98p (4:2:2 10-bit) 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720 × 576: 50.00i (4:2:2 10-bit) 720 × 480: 59.94i (4:2:2 10-bit) HDMI 3840 × 2160: 59.94p/50.00p/29.97p/25.00p/23.98p (4:2:2 10-bit) 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720×576: 50.00p (4:2:2 10-bit) 720×480: 59.94p (4:2:2 10-bit) IP 3840 × 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 1920 × 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 1280 × 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 640 × 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit)

See All

Includes

Specifications

Brand	Canon
Camera	Sensor Resolution Actual: 13.4 Megapixel Effective: 8.29 Megapixel Shutter Speed 1/3 to 1/2000 Second Max Digital Zoom 30x (in 1080p) Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Control	Presets 100 (including Home position) Movement Speed Pan: 0.1 to 100°/sec Tilt: 0.1 to 100°/sec Movement Range Pan: 34° (-170 to 170°) Tilt: 120° (-30 to 90°) Supported Control Protocols IP NDI VISCA
Environmental	Operating Temperature 32 to 104°F Storage Temperature 32 to 104°F Operating Humidity 10 to 90% (Non-Condensing) Storage Humidity 10 to 90% (Non-Condensing)
Interface	Communication Control LAN, Wi-Fi, Serial, IR Network Terminal LAN x1, RJ45, 1000Base-T 12G/3G-SDI OUT Terminal BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ohm SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST 272, SMPTE ST 299 compliant Embedded audio, Timecode (VITC/LTC) Gen-Lock Terminal BNC jack x1, 1.0 Vp-p/75 Ohm Timecode Terminal BNC jack x1, 1.3 Vp-p/50 Ohm or less RS-422 Terminal RJ45 connector x1 Audio Input 1 / Input 2 Terminals INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ohm/Att.: 20 dB Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k Ohm or more Supply Voltage: 48 V DC (Bias resistance: 6.8 k Ohm) Mic Terminal 3.5mm stereo mini-jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k Ohm) Media Slot SD Card x1, microSD card slot x1 – future expansion, recording currently unavailable (February 2023)
Item Type	Package
Lens	Optical Zoom Ratio 15x Focal Length 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm) Field of View Horizontal: 73 to 5.7° Vertical: 45.2 to 3.2° Maximum Aperture f/2.8 to 4.5 Focus Control Autofocus Manual Focus Embedded Audio HDMI/SDI
Package Type	PTZ Video
Physical	Dimensions (W x H x D) 7.9 × 10.6 × 8.2″ (Excluding protrusions) Weight 9.5 lb.
Power	PoE Support PoE++ 802.3bt
Video Output	G-SDI 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720×576: 50.00i (4:2:2 10-bit) 720×480: 59.94i (4:2:2 10-bit) 12G-SDI 3840 × 2160: 59.94p/50.00p/29.97p/25.00P/23.98p (4:2:2 10-bit) 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720 × 576: 50.00i (4:2:2 10-bit) 720 × 480: 59.94i (4:2:2 10-bit) HDMI 3840 × 2160: 59.94p/50.00p/29.97p/25.00p/23.98p (4:2:2 10-bit) 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720×576: 50.00p (4:2:2 10-bit) 720×480: 59.94p (4:2:2 10-bit) IP 3840 × 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 1920 × 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 1280 × 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 640 × 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit)

See All

Resources

Switch Manual

Camera Installation Guide

Auto-Tracking App Manual

Remote Camera Control App Manual

Controller Manual

Reviews

See Reviews

Lensrentals.com offers rentals ranging in length from 1 to 90 days. The shopping cart will automatically update the quoted price as you adjust the length of your rental. Our most common rental periods are shown below:

No Coverage

Lenscap

LenscapPlus

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$185.00	$748.00	$933.00	$311.00
4 days	$198.00	$798.00	$996.00	$249.00
7 days	$264.00	$1044.00	$1308.00	$186.86
10 days	$356.00	$1389.00	$1745.00	$174.50
14 days	$462.00	$1784.00	$2246.00	$160.43
21 days	$620.00	$2375.00	$2995.00	$142.62
30 days	$779.00	$2967.00	$3746.00	$124.87
45 days	$1016.00	$3854.00	$4870.00	$108.22
60 days	$1188.00	$4495.00	$5683.00	$94.72
90 days	$1531.00	$5777.00	$7308.00	$81.20

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$116.00	$748.00	$864.00	$288.00
4 days	$125.00	$798.00	$923.00	$230.75
7 days	$166.00	$1044.00	$1210.00	$172.86
10 days	$224.00	$1389.00	$1613.00	$161.30
14 days	$291.00	$1784.00	$2075.00	$148.21
21 days	$390.00	$2375.00	$2765.00	$131.67
30 days	$490.00	$2967.00	$3457.00	$115.23
45 days	$639.00	$3854.00	$4493.00	$99.84
60 days	$747.00	$4495.00	$5242.00	$87.37
90 days	$963.00	$5777.00	$6740.00	$74.89

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$748.00	$249.33
4 days	$798.00	$199.50
7 days	$1044.00	$149.14
10 days	$1389.00	$138.90
14 days	$1784.00	$127.43
21 days	$2375.00	$113.10
30 days	$2967.00	$98.90
45 days	$3854.00	$85.64
60 days	$4495.00	$74.92
90 days	$5777.00	$64.19
