RED DIGITAL CINEMA KOMODO-X 6K ST Edition

$574.00

7 Day

Rental

Coming Soon!

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

KOMODO-X ST 6K (White)
Male RP SMA Helical Stub Antenna
DSMC AC Power Adapter
3 Prong Universal Power Cord 6ft
Male RP SM 84mm Antenna

Resources

Operation Guide

Accessory Compatibility

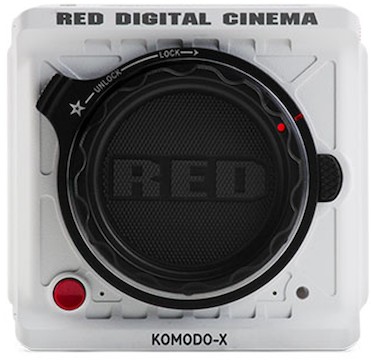

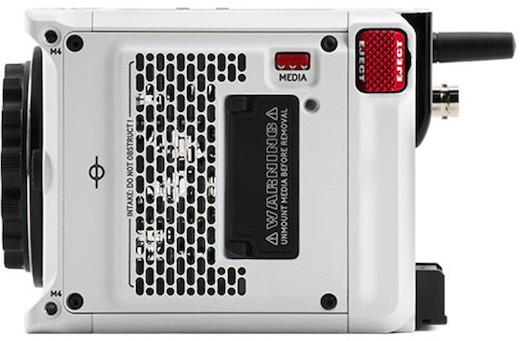

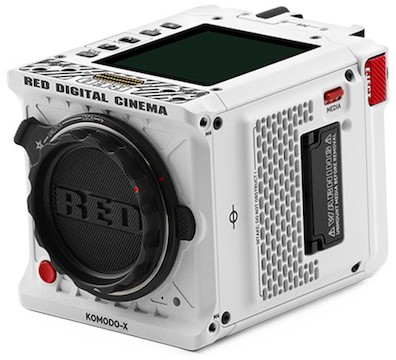

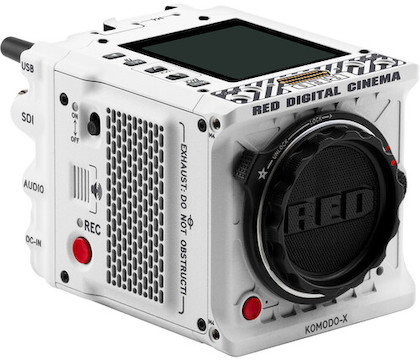

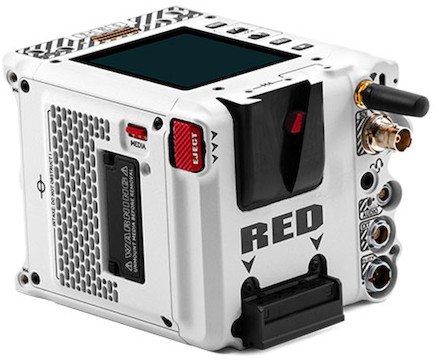

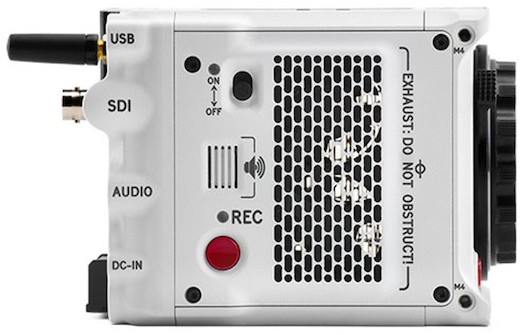

RED DIGITAL CINEMA KOMODO-X 6K ST Edition

Expected Release Date: 11/22/24

The RED DIGITAL CINEMA KOMODO-X 6K ST Edition is RED’s newest addition to the KOMODO line of cinema cameras and offers faster frame rates, a redesigned S35 sensor, and more. Key features include:

Locking Canon RF lens mount
6K streaming via RED Connect license

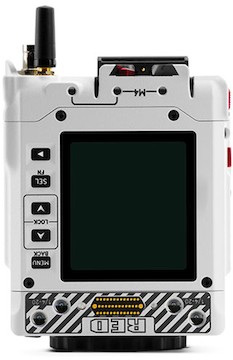

Integrated 2.9-inch touchscreen
Wireless control, file offload via Wi-Fi

Q & A

Will I need anything else?

Yes! At the very least, you’ll need a compatible CFexpress Type B memory card, a card reader, and an RF-mount lens.
The KOMODO can be powered by V-Mount batteries, which are not included with the camera by default but are available as separate rental items, and by the upcoming RED I/O module.

Will this brain work with DSMC2 accessories?

No. The KOMODO is not part of the DSMC2 line, and accessories are not cross compatible.

Does this brain work natively with RF lenses?

Yes! This unit is compatible with all RF mounted lenses.

Does this camera have autofocus?

Yes! This camera has both autofocus and manual focus options.

Specifications

Brand	RED
Camcorder Type	Cinema
Camera Type	Camcorder
Environmental	Operating Temperature 32 to 104°F Storage Temperature -4 to 122°F Storage Humidity 0 to 85% (Non-Condensing)
Exposure Control	Shutter Type Electronic Global Shutter Advertised Dynamic Range 16.5 Stops
Focus Modes	Automatic, Manual Focus
Focus Type	Auto and Manual Focus
General	Battery Type V-Mount Tripod Mounting Thread 1/4"-20 Female (Bottom) 3/8"-16 Female (Bottom) Netflix Approved Yes Material of Construction Aluminum Dimensions (W x H x D) 5.09 × 3.99 × 3.75″ Weight 2.62 lb (Body Only)
Imaging	Lens Mount Canon RF Lens Communication Yes, with Autofocus Support Sensor Resolution Effective: 19.9 Megapixel (6144 × 3240) Image Sensor 27.03 × 14.26 mm (Super35) CMOS Capture Type Stills & Video

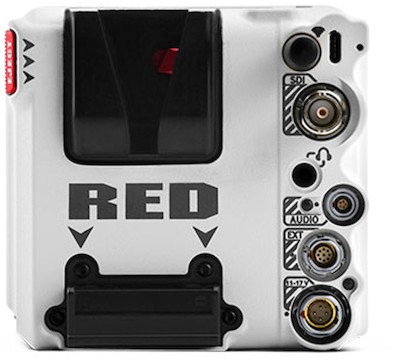

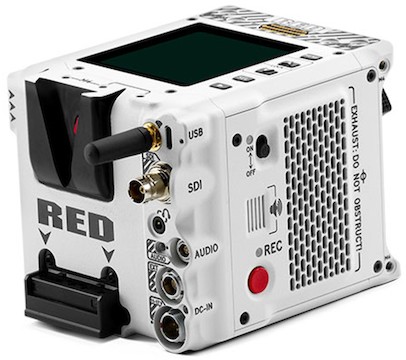

Interface	Media/Memory Card Slot Single Slot: CFexpress Type B (CFexpress 2.0) Video I/O 1 x BNC (12G-SDI) Output Audio I/O 1 x LEMO 5-Pin Line Input on Camera Body Power I/O 1 x LEMO 6-Pin (11 to 17VDC) Input Other I/O 1 × 9-Pin (Genlock, GPI, Timecode) 1 x USB-C (Camera Interface) Control/Data/Video Input/Output 1 x RED Cable-Free Monitor Connection Output Wireless 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control Mobile App Compatible Yes: Android & iOS App Name: RED Control Functionality: Remote Control *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Internal Video Recording Modes	ProRes 4444XQ 4:4:4 4096 × 2160 up to 60.00 fps ProRes 4444 4:4:4 4096 × 2160 up to 80 fps ProRes 422/ProRes 422 HQ/ProRes 422LT 4096 × 2160 up to 120 fps REDCODE RAWREDCODE HQ/REDCODE LQ/REDCODE MQ 6144 × 3240 up to 80 fps [560 Mb/s] 5120 × 2700 up to 96 fps [560 Mb/s] 4096 × 2160 up to 120 fps [560 Mb/s] 2048 × 1080 up to 240 fps [560 Mb/s]
Item Type	Camera and Cinema Cameras
Monitor	Size 2.9" Resolution 1440 × 1440 Display Type Fixed Touchscreen LCD
Mount	Canon RF
Still Image Capture	Aspect Ratio 16:9
Video Capture	Fast-/Slow-Motion Support Yes Built-In Microphone Type Stereo Audio Recording 2-Channel 24-Bit 48 kHz
Viewfinder	Type Optional, Not Included

See All

Includes

KOMODO-X ST 6K (White)
Male RP SMA Helical Stub Antenna
DSMC AC Power Adapter
3 Prong Universal Power Cord 6ft
Male RP SM 84mm Antenna

Specifications

Brand	RED
Camcorder Type	Cinema
Camera Type	Camcorder
Environmental	Operating Temperature 32 to 104°F Storage Temperature -4 to 122°F Storage Humidity 0 to 85% (Non-Condensing)
Exposure Control	Shutter Type Electronic Global Shutter Advertised Dynamic Range 16.5 Stops
Focus Modes	Automatic, Manual Focus
Focus Type	Auto and Manual Focus
General	Battery Type V-Mount Tripod Mounting Thread 1/4"-20 Female (Bottom) 3/8"-16 Female (Bottom) Netflix Approved Yes Material of Construction Aluminum Dimensions (W x H x D) 5.09 × 3.99 × 3.75″ Weight 2.62 lb (Body Only)
Imaging	Lens Mount Canon RF Lens Communication Yes, with Autofocus Support Sensor Resolution Effective: 19.9 Megapixel (6144 × 3240) Image Sensor 27.03 × 14.26 mm (Super35) CMOS Capture Type Stills & Video
Interface	Media/Memory Card Slot Single Slot: CFexpress Type B (CFexpress 2.0) Video I/O 1 x BNC (12G-SDI) Output Audio I/O 1 x LEMO 5-Pin Line Input on Camera Body Power I/O 1 x LEMO 6-Pin (11 to 17VDC) Input Other I/O 1 × 9-Pin (Genlock, GPI, Timecode) 1 x USB-C (Camera Interface) Control/Data/Video Input/Output 1 x RED Cable-Free Monitor Connection Output Wireless 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control Mobile App Compatible Yes: Android & iOS App Name: RED Control Functionality: Remote Control *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Internal Video Recording Modes	ProRes 4444XQ 4:4:4 4096 × 2160 up to 60.00 fps ProRes 4444 4:4:4 4096 × 2160 up to 80 fps ProRes 422/ProRes 422 HQ/ProRes 422LT 4096 × 2160 up to 120 fps REDCODE RAWREDCODE HQ/REDCODE LQ/REDCODE MQ 6144 × 3240 up to 80 fps [560 Mb/s] 5120 × 2700 up to 96 fps [560 Mb/s] 4096 × 2160 up to 120 fps [560 Mb/s] 2048 × 1080 up to 240 fps [560 Mb/s]
Item Type	Camera and Cinema Cameras
Monitor	Size 2.9" Resolution 1440 × 1440 Display Type Fixed Touchscreen LCD
Mount	Canon RF
Still Image Capture	Aspect Ratio 16:9
Video Capture	Fast-/Slow-Motion Support Yes Built-In Microphone Type Stereo Audio Recording 2-Channel 24-Bit 48 kHz
Viewfinder	Type Optional, Not Included

See All

Resources

Operation Guide

Accessory Compatibility

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$92.00	$402.00	$494.00	$164.67
4 days	$99.00	$431.00	$530.00	$132.50
7 days	$132.00	$574.00	$706.00	$100.86
10 days	$178.00	$775.00	$953.00	$95.30
14 days	$231.00	$1005.00	$1236.00	$88.29
21 days	$310.00	$1349.00	$1659.00	$79.00
30 days	$389.00	$1693.00	$2082.00	$69.40
45 days	$508.00	$2210.00	$2718.00	$60.40
60 days	$594.00	$2583.00	$3177.00	$52.95
90 days	$766.00	$3329.00	$4095.00	$45.50

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$62.00	$402.00	$464.00	$154.67
4 days	$66.00	$431.00	$497.00	$124.25
7 days	$88.00	$574.00	$662.00	$94.57
10 days	$119.00	$775.00	$894.00	$89.40
14 days	$154.00	$1005.00	$1159.00	$82.79
21 days	$207.00	$1349.00	$1556.00	$74.10
30 days	$260.00	$1693.00	$1953.00	$65.10
45 days	$339.00	$2210.00	$2549.00	$56.64
60 days	$396.00	$2583.00	$2979.00	$49.65
90 days	$510.00	$3329.00	$3839.00	$42.66

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$402.00	$134.00
4 days	$431.00	$107.75
7 days	$574.00	$82.00
10 days	$775.00	$77.50
14 days	$1005.00	$71.79
21 days	$1349.00	$64.24
30 days	$1693.00	$56.43
45 days	$2210.00	$49.11
60 days	$2583.00	$43.05
90 days	$3329.00	$36.99
