RED DIGITAL CINEMA RANGER MONSTRO 8K VV Brain (Gold Mount)

$1995.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • RED RANGER 8K Monstro VV Brain (Gold Mount)
  • Shimmed PL Mount
  • Production Handle
  • Lemo Flush-Mount Adapter D
  • 3 Prong Power Cord 6ft
  • 3-pin XLR to 4-pin 2B Power Cable
  • 24v XLR3 AC Adapter
  • 3/16" Ball-Point Driver
  • H30A-F13 RED V-RAPTOR XL Case Insert

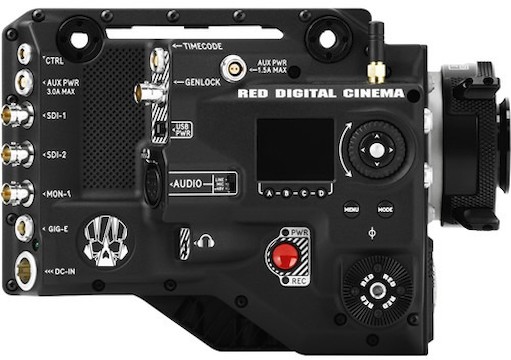

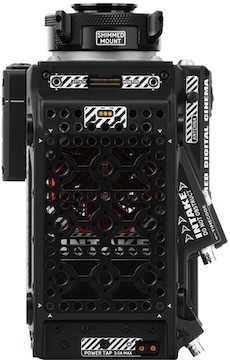

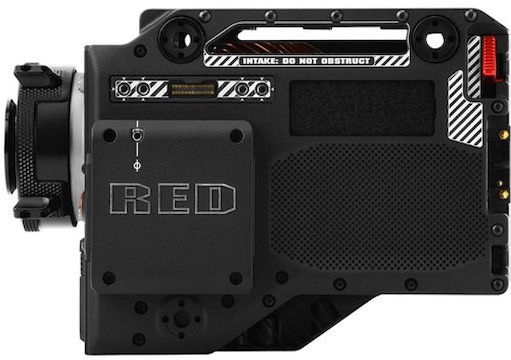

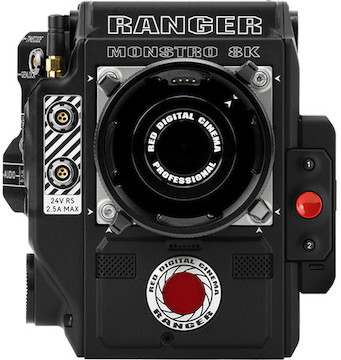

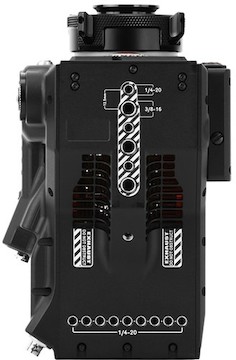

RED DIGITAL CINEMA RANGER MONSTRO 8K VV Brain (Gold Mount)

The RED DIGITAL CINEMA RED RANGER MONSTRO 8K VV (Gold Mount) is a professional grade PL mounted cinema camera designed for demanding use in the studio or on location. Key features include:

  • 8K full-frame CMOS sensor

  • Aluminum alloy construction

  • Records to RED MINI-MAG media

  • 8192 × 4320 recording up to 60 fps
Read More

Specifications

Brand

RED

Camcorder Type

Cinema

Camera Type

Camcorder

Environmental

Operating Temperature

  • 32 to 104°F
Storage Temperature
  • -4 to 122°F
Operating Humidity
  • 0 to 85%

Exposure Control

Shutter Type

  • Electronic Rolling Shutter
Advertised Dynamic Range
  • 17 Stops

General

Battery Type

  • Gold Mount
Tripod Mounting Thread
  • 1/4"-20 Female
  • 3/8"-16 Female
Accessory Mount
  • 17 × 1/4"-20 Female
Netflix Approved
  • Yes

Imaging

Lens Mount

  • ARRI PL
Lens Communication
  • Yes, Cooke /i
Sensor Resolution
  • Effective: 35.4 Megapixel (8192 × 4320)
Sensor Type
  • 40.96 × 21.6 mm (Vistavision) CMOS
Built-In ND Filter
  • None
Internal Filter Holder
  • Yes
Capture Type
  • Stills & Video

Interface

Media/Memory Card Slot

  • Single Slot: RED MINI-MAG
Video I/O
  • 2 x BNC (3G-SDI) Output
  • 1 x BNC (Unspecified SDI) Output
Audio I/O
  • 1 x XLR 5-Pin Mic/Line (+48 V Phantom Power) Input
  • 1 × 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O
  • 1 x LEMO 2-Pin (11.5 to 17 VDC at 3 A) Output
  • 1 x XLR 4-Pin Input
  • 1 x USB-A (5 VDC at 1.5 A) Output
  • 1 x D-Tap (11.5 to 17 VDC at 3 A) Output
  • 1 x LEMO 2-Pin (11.5 to 17 VDC at 1.5 A) Output
  • 2 x Fischer 3-Pin (24 VDC at 2.5 A) Output
Other I/O
  • 1 x LEMO 4-Pin (RS-232) Control Input/Output
  • 1 × 9-Pin (Gigabit Ethernet) Input/Output
  • 1 x BNC (Genlock) Control Input/Output
  • 1 x LEMO 5-Pin (Timecode) Input/Output
Wireless
  • 2.4 GHz Wi-Fi (802.11b/g) Control

See All

Includes

  • RED RANGER 8K Monstro VV Brain (Gold Mount)
  • Shimmed PL Mount
  • Production Handle
  • Lemo Flush-Mount Adapter D
  • 3 Prong Power Cord 6ft
  • 3-pin XLR to 4-pin 2B Power Cable
  • 24v XLR3 AC Adapter
  • 3/16" Ball-Point Driver
  • H30A-F13 RED V-RAPTOR XL Case Insert

Specifications

Brand

RED

Camcorder Type

Cinema

Camera Type

Camcorder

Environmental

Operating Temperature

  • 32 to 104°F
Storage Temperature
  • -4 to 122°F
Operating Humidity
  • 0 to 85%

Exposure Control

Shutter Type

  • Electronic Rolling Shutter
Advertised Dynamic Range
  • 17 Stops

General

Battery Type

  • Gold Mount
Tripod Mounting Thread
  • 1/4"-20 Female
  • 3/8"-16 Female
Accessory Mount
  • 17 × 1/4"-20 Female
Netflix Approved
  • Yes

Imaging

Lens Mount

  • ARRI PL
Lens Communication
  • Yes, Cooke /i
Sensor Resolution
  • Effective: 35.4 Megapixel (8192 × 4320)
Sensor Type
  • 40.96 × 21.6 mm (Vistavision) CMOS
Built-In ND Filter
  • None
Internal Filter Holder
  • Yes
Capture Type
  • Stills & Video

Interface

Media/Memory Card Slot

  • Single Slot: RED MINI-MAG
Video I/O
  • 2 x BNC (3G-SDI) Output
  • 1 x BNC (Unspecified SDI) Output
Audio I/O
  • 1 x XLR 5-Pin Mic/Line (+48 V Phantom Power) Input
  • 1 × 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O
  • 1 x LEMO 2-Pin (11.5 to 17 VDC at 3 A) Output
  • 1 x XLR 4-Pin Input
  • 1 x USB-A (5 VDC at 1.5 A) Output
  • 1 x D-Tap (11.5 to 17 VDC at 3 A) Output
  • 1 x LEMO 2-Pin (11.5 to 17 VDC at 1.5 A) Output
  • 2 x Fischer 3-Pin (24 VDC at 2.5 A) Output
Other I/O
  • 1 x LEMO 4-Pin (RS-232) Control Input/Output
  • 1 × 9-Pin (Gigabit Ethernet) Input/Output
  • 1 x BNC (Genlock) Control Input/Output
  • 1 x LEMO 5-Pin (Timecode) Input/Output
Wireless
  • 2.4 GHz Wi-Fi (802.11b/g) Control

See All
