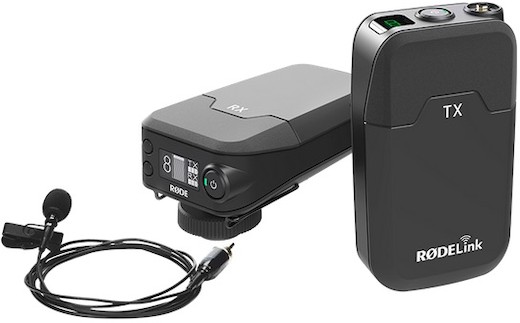

RODELink Wireless Filmmaker Kit

$41.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

RX-CAM Wireless Receiver w/Hot Shoe Mount
TX-BELT Wireless Transmitter w/Belt Clip
Lavalier Microphone w/ 3.5mm Connector
Windscreen
Lavalier clip
TRS cable 1/8" to 1/8"
TRS cable 1/8" to XLR

Resources

Manual

Approximate Battery Life	Receiver: 30 Hours (Alkaline) Transmitter: 30 Hours (Alkaline)
Audio I/O	Receiver: 1x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) Transmitter: 1x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Audio Input Level	1 V RMS (Max)
Audio Output Level	0 dBV (Max)
Audio Type	Lavalier Mic
Battery	Receiver: 2x AA (Not Included) Transmitter: 2x AA (Not Included)
Brand	Rode
Capsule Type	Electret Condenser
Depth	Receiver: 2.0" Transmitter: 1.6"
Diameter	Microphone: 0.2"
Diaphragm	0.10" / 2.54 mm
Display	Receiver: 1x OLED (Battery Status, Channel, Mute, Peak) Transmitter: 1 x LED (Battery Status, Mute)
Diversity	Frequency
Dynamic Range	112 dB
Encryption	128-Bit
Equivalent Noise	25 dB A-Weighted
Form Factor	Receiver: Camera-Mount (Bag Suitable) Transmitter: Bodypack Microphone: Lavalier
Frequency Range	60 Hz to 18 kHz
Frequency Response	Receiver: 35 Hz to 22 kHz Transmitter: 35 Hz to 22 kHz
Impedance	Receiver: 1/8" / 3.5 mm Output: 300 Ohms (Unbalanced) Microphone: 3 Kilohms
Included Transmitters	1x Bodypack with Microphone
Item Type	Audio
Latency	4 ms (Maximum)
Length	Receiver: 2.6" Transmitter: 2.6" Microphone: 0.5"
Material	Plastic
Maximum Operating Range	330’ / 100.6 m (Line of Sight)
Maximum SPL	110 dB SPL
Maximum Systems Per Setup	8
Mounting Options	Belt Clip, Shoe-Mount (with Included Hardware)
Muting	Programmable Mute Switch
Number of Audio Channels	1
Output Connectors	1x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Plug-In Power	4 V
Polar Pattern	Omnidirectional
Power Requirements	Receiver: Battery, Bus Power (USB) Transmitter: Battery, Bus Power (USB)
Sample Rate	44.1 kHz / 24-Bit
Sensitivity	-33.5 dB at 1 kHz
Signal Processing	None
Sound Field	Mono
USB/Lighting Connectivity	1x Micro-USB (Bus Power)
Weight	Receiver: 0.4 lb. Transmitter: 0.4 lb. Microphone: 0.003 lb.
Width	Receiver: 4.4" Transmitter: 4.4"
Wireless Transmission	Digital 2.4 GHz

Approximate Battery Life	Receiver: 30 Hours (Alkaline) Transmitter: 30 Hours (Alkaline)
Audio I/O	Receiver: 1x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) Transmitter: 1x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Audio Input Level	1 V RMS (Max)
Audio Output Level	0 dBV (Max)
Audio Type	Lavalier Mic
Battery	Receiver: 2x AA (Not Included) Transmitter: 2x AA (Not Included)
Brand	Rode
Capsule Type	Electret Condenser
Depth	Receiver: 2.0" Transmitter: 1.6"
Diameter	Microphone: 0.2"
Diaphragm	0.10" / 2.54 mm
Display	Receiver: 1x OLED (Battery Status, Channel, Mute, Peak) Transmitter: 1 x LED (Battery Status, Mute)
Diversity	Frequency
Dynamic Range	112 dB
Encryption	128-Bit
Equivalent Noise	25 dB A-Weighted
Form Factor	Receiver: Camera-Mount (Bag Suitable) Transmitter: Bodypack Microphone: Lavalier
Frequency Range	60 Hz to 18 kHz
Frequency Response	Receiver: 35 Hz to 22 kHz Transmitter: 35 Hz to 22 kHz
Impedance	Receiver: 1/8" / 3.5 mm Output: 300 Ohms (Unbalanced) Microphone: 3 Kilohms
Included Transmitters	1x Bodypack with Microphone
Item Type	Audio
Latency	4 ms (Maximum)
Length	Receiver: 2.6" Transmitter: 2.6" Microphone: 0.5"
Material	Plastic
Maximum Operating Range	330’ / 100.6 m (Line of Sight)
Maximum SPL	110 dB SPL
Maximum Systems Per Setup	8
Mounting Options	Belt Clip, Shoe-Mount (with Included Hardware)
Muting	Programmable Mute Switch
Number of Audio Channels	1
Output Connectors	1x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Plug-In Power	4 V
Polar Pattern	Omnidirectional
Power Requirements	Receiver: Battery, Bus Power (USB) Transmitter: Battery, Bus Power (USB)
Sample Rate	44.1 kHz / 24-Bit
Sensitivity	-33.5 dB at 1 kHz
Signal Processing	None
Sound Field	Mono
USB/Lighting Connectivity	1x Micro-USB (Bus Power)
Weight	Receiver: 0.4 lb. Transmitter: 0.4 lb. Microphone: 0.003 lb.
Width	Receiver: 4.4" Transmitter: 4.4"
Wireless Transmission	Digital 2.4 GHz

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$8.00	$29.00	$37.00	$12.33
4 days	$9.00	$31.00	$40.00	$10.00
7 days	$12.00	$41.00	$53.00	$7.57
10 days	$16.00	$55.00	$71.00	$7.10
14 days	$21.00	$72.00	$93.00	$6.64
21 days	$28.00	$96.00	$124.00	$5.90
30 days	$35.00	$121.00	$156.00	$5.20
45 days	$46.00	$158.00	$204.00	$4.53
60 days	$54.00	$185.00	$239.00	$3.98
90 days	$70.00	$238.00	$308.00	$3.42

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$6.00	$29.00	$35.00	$11.67
4 days	$6.00	$31.00	$37.00	$9.25
7 days	$8.00	$41.00	$49.00	$7.00
10 days	$11.00	$55.00	$66.00	$6.60
14 days	$14.00	$72.00	$86.00	$6.14
21 days	$19.00	$96.00	$115.00	$5.48
30 days	$24.00	$121.00	$145.00	$4.83
45 days	$31.00	$158.00	$189.00	$4.20
60 days	$36.00	$185.00	$221.00	$3.68
90 days	$46.00	$238.00	$284.00	$3.16

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$29.00	$9.67
4 days	$31.00	$7.75
7 days	$41.00	$5.86
10 days	$55.00	$5.50
14 days	$72.00	$5.14
21 days	$96.00	$4.57
30 days	$121.00	$4.03
45 days	$158.00	$3.51
60 days	$185.00	$3.08
90 days	$238.00	$2.64
