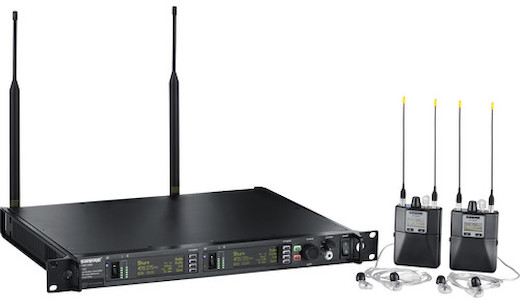

Shure PSM 1000 Advanced Personal Monitor System (G10)

The Shure PSM 1000 Advanced Personal Monitor System (G10) is a full wireless system designed to deliver immaculate RF signal over a 300-foot operating range. Key features include:

Two P10R+ bodypack receivers
Full-rack 2-channel wireless transmitter
Networkable via Ethernet
Includes antennas and cables

Q & A

Does this rental include batteries?

No, this rental will not include any AA batteries for the receivers.
We recommend adding the Rechargeable AA Battery 8-Pack Travel Kit, which includes 8 total batteries and a charger to ensure you have enough juice for your performance or presentation!

Does this rental include an ethernet cable?

This rental doesn’t include an ethernet cable. If you need one, you can find some options here.

Does this rental include rack-mounting brackets?

Yes, this rental includes the rack-mounting brackets and the hardware you’ll need to install them.
This rental doesn’t ship in a rack case, but we offer the SKB 3i-2217M103U Wheeled Case w/ 13-inch 3U Fly Rack as a separate rental item.

Specifications

Brand	Shure
Headphone	Wearing Style Dual Wired Earbud with Behind-Ear Cabling Earpiece Design In-Ear (Intra-Aural) Open/Closed-Back Closed-Back Sound Field Stereo Number of Drivers 2 per Earpiece Driver Type Dynamic Impedance 22 Ohms Active Noise Cancellation No Volume Limiting / Child-Safe No Built-In Mic No Audio Connector 1x 1/8" / 3.5 mm TRS Included Adapter 1/4" Connector Plating Gold Cable Design Detachable / Straight Audio Connector to Earpiece MMCX Cable Length 5.3’ Color Clear
Package Type	Wireless Audio
Receiver	RF Filter Range Tri-Band: -3 dB at 30.5 MHz from the Center Frequency of Each Band RF Gain Active: 31 dB (Adjusts RF Sensitivity to Provide More RF Dynamic Range) RF Sensitivity 2.2 μV (20 dB SINAD) Squelch Threshold 22 dB SINAD (±3 dB), Default Setting Adjacent Channel Rejection >70 dB Intermodulation Attenuation >70 dB Blocking >80 dB Image Rejection >90 dB Image Rejection >90 dB Audio Output Power 100 mW per Output (1 kHz @ <1% Distortion, Peak Power, @ 16 Ohms) Minimum Load Impedance 4 Ohms Output Impedance <1 Ohm 4-Band Parametric Equalizer Low-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 100 Hz Low-Mid Selectable Gain: ±2, ±4, ±6 dB @ 160, 250, 400, 500, 630 Hz Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5 High-Mid Selectable Gain: ±2, ±4, ±6 dB @ 1, 1.6, 2.5, 4, 6.3 kHz Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5 High-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 10 kHz Volume Limiter Selectable: 0 to -48 dB in 3 dB Steps Volume Lock Selectable: 0 to -70 dB Limits Volume Adjustment Knob Selected Value Analogous to Volume Knob Increment Battery Life 4-6 Hours (Continuous Use) with AA Batteries Dimensions 3.9 × 2.6 × 0.9″ Weight 5.6 oz without Batteries
Transmitter	RF Carrier Frequency Range G10: 470 to 542 MHz Compatible Frequencies Per Band: 39 Tuning Bandwidth 72 MHz Operating Range 300’ / 90 m (Environment Dependent) Frequency Response 35 Hz to 15 kHz (±1 dB) Signal to Noise Ratio 90 dB (Typical) A-Weighted Total Harmonic Distortion (THD) Ref. ±34 kHz Deviation at 1 kHz <0.5% (Typical) Companding Patented Shure Audio Reference Companding Spurious Rejection Ref. 12 dB SINAD: >80 dB (Typical) Frequency Stability ±2.5 ppm MPX Pilot Tone 19 kHz (±0.3 kHz) Modulation FM (±34 kHz Deviation at 1 kHz) MPX Stereo Ref. Operating Temperature 0 to 135°F RF Output Power Selectable: 10, 50, 100 mW (20 dBm) RF Output Impedance 50 Ohms (typical) Power Requirement Input: 100 to 240 VAC, 50/60 Hz, 0.5 A Max (5.5, with Outlet Loaded) Output: 100 to 240 VAC, 50/60 Hz, 5 A Max, Unswitched Audio Input Combination XLR-1/4" /6.3 mm TRS Polarity XLR: Non-Inverting (Pin 2 Positive with Respect to Pin 3) 1/4": Tip Positive with Respect to Ring Configuration Electronically Balanced Impedance 70.2 Kilohms (Actual) Nominal Input Level Switchable: +4 dBu, -10 dBV Maximum Input Level 4 dBu: +29.2 dBu -10 dBV: +12.2 dBu Pin Assignments XLR: 1=Ground, 2=Hot, 3=Cold 1/4" / 6.3 mm TRS: Tip=Hot, Ring=Cold, Sleeve=Ground Phantom Power Protection Up to 60 VDC Audio Connector Type 1/4" TRS Audio Configuration Electronically Balanced Audio Impedance Connected Directly to Inputs Dimensions 1.7 × 19.0 × 13.5″ Weight 10.4 lb

Includes

Specifications

Brand	Shure
Headphone	Wearing Style Dual Wired Earbud with Behind-Ear Cabling Earpiece Design In-Ear (Intra-Aural) Open/Closed-Back Closed-Back Sound Field Stereo Number of Drivers 2 per Earpiece Driver Type Dynamic Impedance 22 Ohms Active Noise Cancellation No Volume Limiting / Child-Safe No Built-In Mic No Audio Connector 1x 1/8" / 3.5 mm TRS Included Adapter 1/4" Connector Plating Gold Cable Design Detachable / Straight Audio Connector to Earpiece MMCX Cable Length 5.3’ Color Clear
Package Type	Wireless Audio
Receiver	RF Filter Range Tri-Band: -3 dB at 30.5 MHz from the Center Frequency of Each Band RF Gain Active: 31 dB (Adjusts RF Sensitivity to Provide More RF Dynamic Range) RF Sensitivity 2.2 μV (20 dB SINAD) Squelch Threshold 22 dB SINAD (±3 dB), Default Setting Adjacent Channel Rejection >70 dB Intermodulation Attenuation >70 dB Blocking >80 dB Image Rejection >90 dB Image Rejection >90 dB Audio Output Power 100 mW per Output (1 kHz @ <1% Distortion, Peak Power, @ 16 Ohms) Minimum Load Impedance 4 Ohms Output Impedance <1 Ohm 4-Band Parametric Equalizer Low-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 100 Hz Low-Mid Selectable Gain: ±2, ±4, ±6 dB @ 160, 250, 400, 500, 630 Hz Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5 High-Mid Selectable Gain: ±2, ±4, ±6 dB @ 1, 1.6, 2.5, 4, 6.3 kHz Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5 High-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 10 kHz Volume Limiter Selectable: 0 to -48 dB in 3 dB Steps Volume Lock Selectable: 0 to -70 dB Limits Volume Adjustment Knob Selected Value Analogous to Volume Knob Increment Battery Life 4-6 Hours (Continuous Use) with AA Batteries Dimensions 3.9 × 2.6 × 0.9″ Weight 5.6 oz without Batteries
Transmitter	RF Carrier Frequency Range G10: 470 to 542 MHz Compatible Frequencies Per Band: 39 Tuning Bandwidth 72 MHz Operating Range 300’ / 90 m (Environment Dependent) Frequency Response 35 Hz to 15 kHz (±1 dB) Signal to Noise Ratio 90 dB (Typical) A-Weighted Total Harmonic Distortion (THD) Ref. ±34 kHz Deviation at 1 kHz <0.5% (Typical) Companding Patented Shure Audio Reference Companding Spurious Rejection Ref. 12 dB SINAD: >80 dB (Typical) Frequency Stability ±2.5 ppm MPX Pilot Tone 19 kHz (±0.3 kHz) Modulation FM (±34 kHz Deviation at 1 kHz) MPX Stereo Ref. Operating Temperature 0 to 135°F RF Output Power Selectable: 10, 50, 100 mW (20 dBm) RF Output Impedance 50 Ohms (typical) Power Requirement Input: 100 to 240 VAC, 50/60 Hz, 0.5 A Max (5.5, with Outlet Loaded) Output: 100 to 240 VAC, 50/60 Hz, 5 A Max, Unswitched Audio Input Combination XLR-1/4" /6.3 mm TRS Polarity XLR: Non-Inverting (Pin 2 Positive with Respect to Pin 3) 1/4": Tip Positive with Respect to Ring Configuration Electronically Balanced Impedance 70.2 Kilohms (Actual) Nominal Input Level Switchable: +4 dBu, -10 dBV Maximum Input Level 4 dBu: +29.2 dBu -10 dBV: +12.2 dBu Pin Assignments XLR: 1=Ground, 2=Hot, 3=Cold 1/4" / 6.3 mm TRS: Tip=Hot, Ring=Cold, Sleeve=Ground Phantom Power Protection Up to 60 VDC Audio Connector Type 1/4" TRS Audio Configuration Electronically Balanced Audio Impedance Connected Directly to Inputs Dimensions 1.7 × 19.0 × 13.5″ Weight 10.4 lb
