Teradek Cube 655 H.264 HD Encoder

$127.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Cube 655 encoder
(2) Teradek 2dBi V Antenna
Mounting bracket
2-pin LEMO AC adapter
2-pin LEMO D-Tap cable
Hardware kit

Resources

Manual

Quick Start Guide

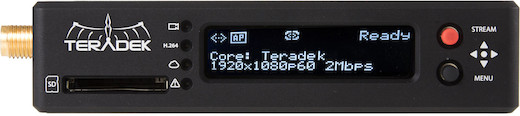

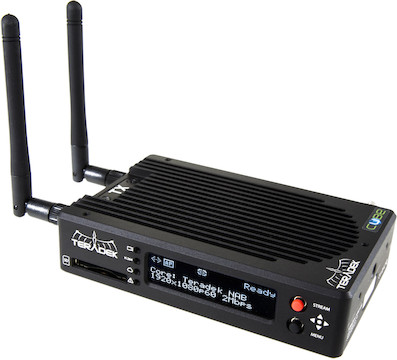

Teradek Cube 655 H.264 HD Encoder

The Teradek Cube 655 H.264 HD Encoder is a streaming video encoder with SDI & HDMI inputs that allows you to share video to popular RTMP video streaming platforms via Wi-Fi & Ethernet at up to 15 Mbps. Key features include:

Adaptive bit rate encoding at up to 15 Mbps
WiFi or ethernet streaming on up to six devices
SDI and HDMI inputs
Ethernet, Wi-Fi, and USB streaming support

Q & A

How is this powered?

This device is powered by either an included AC adapter or d-tap power cable. Please note that you will need your own d-tap power source.

Can this device stream over 4G LTE cellular?

No. This version of the Cube 655 is only capable of streaming via Wi-Fi and Ethernet.

Does this rental include video cables?

No. You’ll need an SDI or HDMI cable dependent on your choice of camera.

Does this device offer bonded streaming?

No. This device does not offer bonded streaming in this configuration, but we also rent the Teradek VidiU Go which does.

Specifications

Brand	Teradek

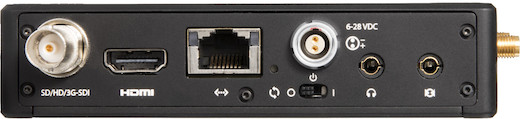

Inputs/Outputs	Video Inputs HDMI: (1) Type A 3G-SDI: (1) BNC (3G-SDI, 75 Ohms) Audio Inputs Embedded HDMI Audio Input: 2-Channel (Unbalanced) Embedded SDI Audio Input: 2-Channel (Unbalanced) Analog Line-In: (1) 3.5 mm TRS Audio Output Headphone: (1) 3.5 mm TRS
Item Type	Monitoring and Wireless Video
Monitoring Type	Wireless
Network Protocol	Network TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP Video Transport RTMP, Live:Air Software/Platform Integration: Facebook, YouTube Live, Vimeo, Persicope, Twitch, Wowza, Ustream, Livestream
Physical	Dimensions 4.75 × 3 × 1.1″ Weight 11.6 oz Mounting (2) 1/4"-20 threaded holes (vertical, horizontal)
Power Supply	Input Type: 2-pin LEMO Voltage: 6-28 VDC Battery None Consumption 7 W (max)
Video Formats	Supported Resolutions 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF 30/29/25/24/23 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 (HDMI Only) 576i: 50 480p: 59.94/60 (HDMI Only) 480i: 59.94/60 Codecs H.264: Base / Main / High Profile up to Level 4.2 Bitrate 250 kb/s to 15 Mb/s
Wireless	WiFi 2.4/5GHz 802.11 ac/a/b/g/n MiMo

See All

Includes

Cube 655 encoder
(2) Teradek 2dBi V Antenna
Mounting bracket
2-pin LEMO AC adapter
2-pin LEMO D-Tap cable
Hardware kit

Specifications

Brand	Teradek
Inputs/Outputs	Video Inputs HDMI: (1) Type A 3G-SDI: (1) BNC (3G-SDI, 75 Ohms) Audio Inputs Embedded HDMI Audio Input: 2-Channel (Unbalanced) Embedded SDI Audio Input: 2-Channel (Unbalanced) Analog Line-In: (1) 3.5 mm TRS Audio Output Headphone: (1) 3.5 mm TRS
Item Type	Monitoring and Wireless Video
Monitoring Type	Wireless
Network Protocol	Network TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP Video Transport RTMP, Live:Air Software/Platform Integration: Facebook, YouTube Live, Vimeo, Persicope, Twitch, Wowza, Ustream, Livestream
Physical	Dimensions 4.75 × 3 × 1.1″ Weight 11.6 oz Mounting (2) 1/4"-20 threaded holes (vertical, horizontal)
Power Supply	Input Type: 2-pin LEMO Voltage: 6-28 VDC Battery None Consumption 7 W (max)
Video Formats	Supported Resolutions 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF 30/29/25/24/23 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 (HDMI Only) 576i: 50 480p: 59.94/60 (HDMI Only) 480i: 59.94/60 Codecs H.264: Base / Main / High Profile up to Level 4.2 Bitrate 250 kb/s to 15 Mb/s
Wireless	WiFi 2.4/5GHz 802.11 ac/a/b/g/n MiMo

See All

Resources

Manual

Quick Start Guide

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$29.00	$89.00	$118.00	$39.33
4 days	$32.00	$95.00	$127.00	$31.75
7 days	$42.00	$127.00	$169.00	$24.14
10 days	$57.00	$171.00	$228.00	$22.80
14 days	$74.00	$222.00	$296.00	$21.14
21 days	$99.00	$298.00	$397.00	$18.90
30 days	$124.00	$375.00	$499.00	$16.63
45 days	$162.00	$489.00	$651.00	$14.47
60 days	$189.00	$572.00	$761.00	$12.68
90 days	$244.00	$737.00	$981.00	$10.90

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$20.00	$89.00	$109.00	$36.33
4 days	$21.00	$95.00	$116.00	$29.00
7 days	$28.00	$127.00	$155.00	$22.14
10 days	$38.00	$171.00	$209.00	$20.90
14 days	$49.00	$222.00	$271.00	$19.36
21 days	$66.00	$298.00	$364.00	$17.33
30 days	$83.00	$375.00	$458.00	$15.27
45 days	$108.00	$489.00	$597.00	$13.27
60 days	$126.00	$572.00	$698.00	$11.63
90 days	$162.00	$737.00	$899.00	$9.99

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$89.00	$29.67
4 days	$95.00	$23.75
7 days	$127.00	$18.14
10 days	$171.00	$17.10
14 days	$222.00	$15.86
21 days	$298.00	$14.19
30 days	$375.00	$12.50
45 days	$489.00	$10.87
60 days	$572.00	$9.53
90 days	$737.00	$8.19
