Teradek Cube 755 HEVC/H.264 HD Encoder Gold Mount

$153.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Cube 755 encoder
(2) Teradek 2dBi V Antenna
2-pin LEMO AC adapter
2-pin LEMO D-Tap cable
Gold Mount battery plate

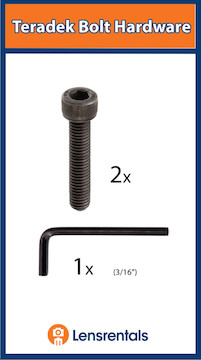

Hardware kit

Does Not Include

Gold Mount batteries

Resources

Manual

Quick Start Guide

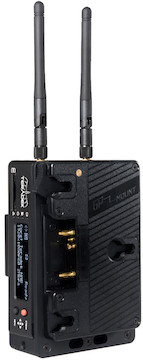

Teradek Cube 755 HEVC/H.264 HD Encoder Gold Mount

The Teradek Cube 755 HD Encoder (Gold Mount) is a gold mount compatible, streaming video encoder with SDI & HDMI inputs that allow you to share video to popular RTMP video streaming platforms via Wi-Fi & Ethernet at up to 30 Mbps. Key features include:

Adaptive bit rate encoding at up to 30 Mbps
WiFi or ethernet streaming on up to six devices
SDI and HDMI inputs
Gold mount compatible, batteries not included

Q & A

Does this encoder have any NDI capabilities?

No. Enabling NDI on the 755 Encoder requires a paid license. Rather than build the cost of the license into the rental price for everyone, we’ve decided to wait and see whether NDI for the 755 is a feature our customers require.
If you’d like a 755 Encoder with the NDI license installed, just contact us and we’ll be happy to talk it over with you.

How is this powered?

This rental includes an ac adapter, gold mount battery plate, and d-tap cable. Please note, gold mount batteries are not included with this rental but are available here as a separate rental item.

Can this device stream over 4G LTE cellular?

Yes. You can use a 4G or 3G compatible USB Modem for cellular streaming.

Does this rental include video cables?

No. You’ll need an SDI or HDMI cable dependent on your choice of camera.

Does this device offer bonded streaming?

No. This device does not offer bonded streaming in this configuration, but we also rent the Teradek VidiU Go which does.

Specifications

Brand	Teradek
Inputs/Outputs	Video Inputs HDMI: (1) Type A 3G-SDI: (1) BNC (3G-SDI, 75 Ohms) Autio Inputs Embedded HDMI Audio Input: 2-Channel (Unbalanced) Embedded SDI Audio Input: 2-Channel (Unbalanced) Analog Line-In: (1) 3.5 mm TRS Audio Output Headphone: (1) 3.5 mm TRS
Item Type	Monitoring and Wireless Video
Monitoring Type	Wireless
Network Protocol	Network TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP Video Transport RTMP, Live:Air Software/Platform Integration: Facebook, YouTube Live, Vimeo, Persicope, Twitch, Wowza, Ustream, Livestream
Power Supply	Input Type: 2-pin LEMO Voltage: 6-28 VDC Battery Plate Gold Mount Compatible Consumption 8 W (max)
Video Formats	Supported Resolutions 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF 30/29/25/24/23 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 (HDMI Only) 576i: 50 480p: 59.94/60 (HDMI Only) 480i: 59.94/60 Codecs H.264: Base / Main / High Profile up to Level 4.2 H.265: Main Profile up to Level 4.1 Bitrate 250 kb/s to 30 Mb/s
Wireless	WiFi 2.4/5GHz 802.11 ac/a/b/g/n MiMo

Includes

Cube 755 encoder
(2) Teradek 2dBi V Antenna
2-pin LEMO AC adapter
2-pin LEMO D-Tap cable
Gold Mount battery plate
Hardware kit

Does Not Include

Gold Mount batteries

Specifications

Brand	Teradek
Inputs/Outputs	Video Inputs HDMI: (1) Type A 3G-SDI: (1) BNC (3G-SDI, 75 Ohms) Autio Inputs Embedded HDMI Audio Input: 2-Channel (Unbalanced) Embedded SDI Audio Input: 2-Channel (Unbalanced) Analog Line-In: (1) 3.5 mm TRS Audio Output Headphone: (1) 3.5 mm TRS
Item Type	Monitoring and Wireless Video
Monitoring Type	Wireless
Network Protocol	Network TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP Video Transport RTMP, Live:Air Software/Platform Integration: Facebook, YouTube Live, Vimeo, Persicope, Twitch, Wowza, Ustream, Livestream
Power Supply	Input Type: 2-pin LEMO Voltage: 6-28 VDC Battery Plate Gold Mount Compatible Consumption 8 W (max)
Video Formats	Supported Resolutions 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF 30/29/25/24/23 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 (HDMI Only) 576i: 50 480p: 59.94/60 (HDMI Only) 480i: 59.94/60 Codecs H.264: Base / Main / High Profile up to Level 4.2 H.265: Main Profile up to Level 4.1 Bitrate 250 kb/s to 30 Mb/s
Wireless	WiFi 2.4/5GHz 802.11 ac/a/b/g/n MiMo

Resources

Manual

Quick Start Guide

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$36.00	$107.00	$143.00	$47.67
4 days	$38.00	$115.00	$153.00	$38.25
7 days	$51.00	$153.00	$204.00	$29.14
10 days	$69.00	$207.00	$276.00	$27.60
14 days	$89.00	$268.00	$357.00	$25.50
21 days	$120.00	$360.00	$480.00	$22.86
30 days	$150.00	$451.00	$601.00	$20.03
45 days	$196.00	$589.00	$785.00	$17.44
60 days	$230.00	$689.00	$919.00	$15.32
90 days	$296.00	$887.00	$1183.00	$13.14

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$24.00	$107.00	$131.00	$43.67
4 days	$26.00	$115.00	$141.00	$35.25
7 days	$34.00	$153.00	$187.00	$26.71
10 days	$46.00	$207.00	$253.00	$25.30
14 days	$60.00	$268.00	$328.00	$23.43
21 days	$80.00	$360.00	$440.00	$20.95
30 days	$100.00	$451.00	$551.00	$18.37
45 days	$131.00	$589.00	$720.00	$16.00
60 days	$153.00	$689.00	$842.00	$14.03
90 days	$197.00	$887.00	$1084.00	$12.04

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$107.00	$35.67
4 days	$115.00	$28.75
7 days	$153.00	$21.86
10 days	$207.00	$20.70
14 days	$268.00	$19.14
21 days	$360.00	$17.14
30 days	$451.00	$15.03
45 days	$589.00	$13.09
60 days	$689.00	$11.48
90 days	$887.00	$9.86
