VRI Phantom VEO4K Standard V-Mount Kit (EF)

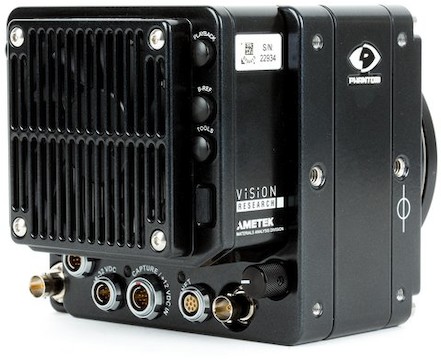

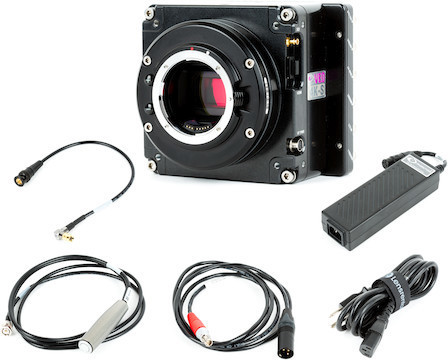

This VRI Phantom VEO4K Standard V-Mount Kit (EF) is a complete bundle that offers power, memory, control, and protection to the star of the show, the Phantom VEO4K. This kit provides you with most key production items, but for whatever else you may need, you can check out the Recommended section on your screen. For additional information and specifications of each included product, feel free to click any of the highlighted links below!

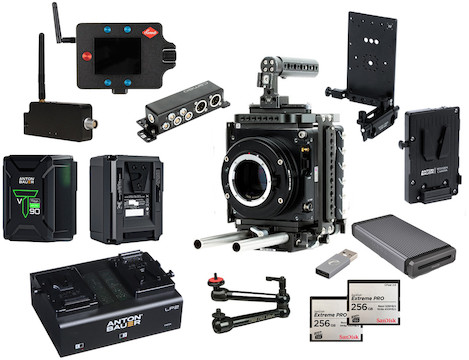

The VRI Phantom VEO4K Standard V-Mount Kit (EF) includes:

Q & A

What are the benefits of the dual shutter?

The Global Shutter is recommended for scientific measurements, light synchronization, or reducing shutter artifacts. When using the GS, black shading becomes imperative before each capture, you lose approximately 9 stops from your dynamic range, and the base ISO raises to 640, making it more prone to noise.
The Rolling Shutter broadens your dynamic range to 12.5 stops, has low noise with a base ISO of 320, but as with most rolling shutters, is more prone to digital artifacts, especially when using low quality lights.
Use Sandisk’s Format and Refresh Tool every time you finish transferring footage.
Transfer footage using a media management utility, like ShotPut Pro.
Whenever possible, record to both memory card slots at the same time, for safety.

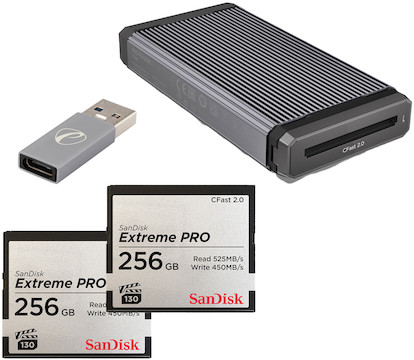

I've heard CFast can be a bit finicky, what are the best practices when using this type of media?

Format each memory card every time it is inserted into the camera, no exceptions.
Do not allow cards to fill completely, always leave a few unused Gigabytes.

Are there any travel restrictions on this product that I should be concerned about?

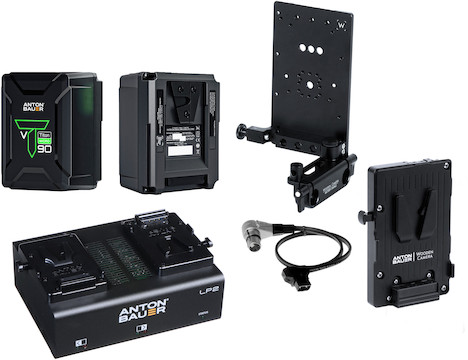

The FAA have changed their guidelines dealing with rechargeable lithium-ion battery packs. If the TSA finds batteries that are not in compliance with their rules when they inspect your baggage, they’ll discard them, and we’ll charge you for the missing equipment. Consider shipping the battery ahead to a FedEx store if you’ll be traveling to your shoot location.

Specifications

Brand	VRI
Imaging	Maximum Resolution 4096 × 2304 Sensor Type: S35, 31.7mm diagonal, CMOS Rolling Shutter ISO Maximum ISO: 20,000 Base ISO: 320

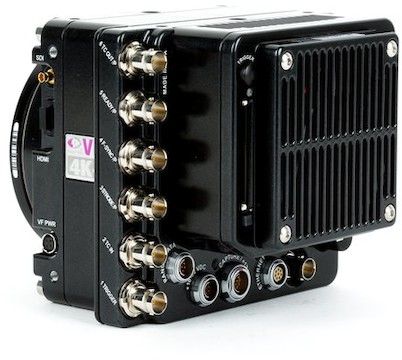

Inputs/Outputs	Audio Inputs None Audio Output None Video Out HDMI Type-A 3G HD-SDI (1x front, 1x rear) Additional Inputs/Outputs 2-pin LEMO out (12V) Fischer-3 R/S output
Item Type	Cinema Cameras and Package
Package Type	VRI Phantom Video
Physical	Dimensions 5 × 5.5 × 6″ Weight 6 lb (brain only) Operating Temperature 14°-122°F
Power Supply	Input Ports DC In (XLR-4), Batt In (XLR-4), 6-Pin Fischer 16-32 VDC
Recording	Formats Cine RAW Modes 4096 × 2304 at 938 fps 4096 × 2160 at 1000 fps 4096 × 1152 at 1850 fps 2048 × 2048 at 1050 fps 2048 × 1152 at 1850 fps 2048 × 1080 at 1970 fps Media CFast 2.0

Includes

Specifications

Brand	VRI
Imaging	Maximum Resolution 4096 × 2304 Sensor Type: S35, 31.7mm diagonal, CMOS Rolling Shutter ISO Maximum ISO: 20,000 Base ISO: 320
Inputs/Outputs	Audio Inputs None Audio Output None Video Out HDMI Type-A 3G HD-SDI (1x front, 1x rear) Additional Inputs/Outputs 2-pin LEMO out (12V) Fischer-3 R/S output
Item Type	Cinema Cameras and Package
Package Type	VRI Phantom Video
Physical	Dimensions 5 × 5.5 × 6″ Weight 6 lb (brain only) Operating Temperature 14°-122°F
Power Supply	Input Ports DC In (XLR-4), Batt In (XLR-4), 6-Pin Fischer 16-32 VDC
Recording	Formats Cine RAW Modes 4096 × 2304 at 938 fps 4096 × 2160 at 1000 fps 4096 × 1152 at 1850 fps 2048 × 2048 at 1050 fps 2048 × 1152 at 1850 fps 2048 × 1080 at 1970 fps Media CFast 2.0

Resources

Charger Manual

Camera Manual

Battery Manual

Frame Rate Calculator

Lens Calculator

VEObob Overview

Reviews

See Reviews
