ARRI Camera Control Monitor CCM-1 Set

$353.00

/

7 Day

Rental

Arrival Date

Return Date

Interested in purchasing?

Includes

ARRI CCM-1 Camera Control
Sun Hood
Monitor Mount
Porta Brace PB-B812 Stuff Sack
Viewfinder Cable 1.5ft
24V 3-Pin Fischer Male to Female 1.6ft

Resources

Quick Start Guide

Recommended:

ARRI Camera Control Monitor CCM-1 Set

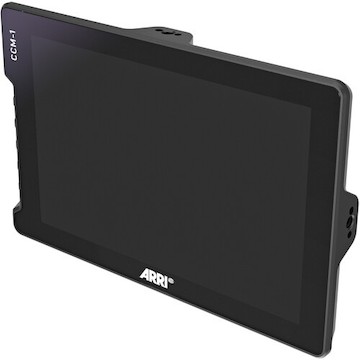

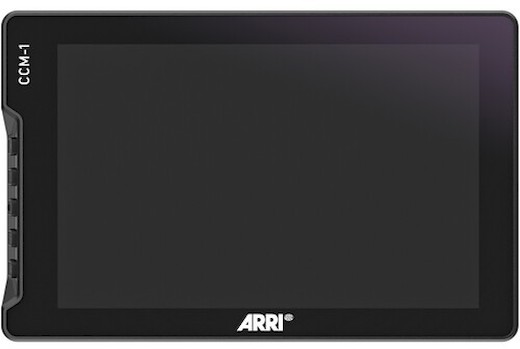

The ARRI Camera Control Monitor CCM-1 Set is a 7 inch touchscreen LCD that provides menu access and camera control of your ARRI camera. Key features include:

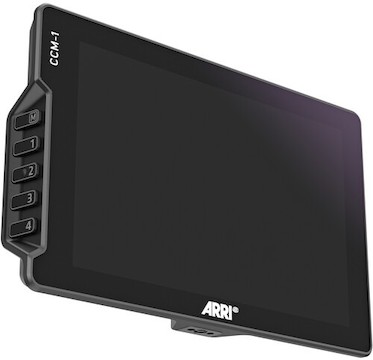

Touchscreen display & physical buttons
For ARRI ALEXA Mini LF & ALEXA 35
Includes folding sunshade & tilt mount
Can operate as an EVF alternative

Specifications

Brand	ARRI
Camera Type	Camcorder
Display	Panel Type TFT LCD Display Size 7.0" Screen Area 6.0 × 3.7″ Resolution 1920 × 1200 Aspect Ratio 16:10 Viewing Angle Horizontal: 160° Vertical: 160° Touchscreen Yes Maximum Brightnes 1300 nits / cd/m2 Bit Depth / Color Support 10-Bit (1.07 Billion Colors) HDR Compatibility None Pixels Per Inch (ppi) 322 ppi Response Time 25 ms Color Gamut 100% DCI-P3 100% Rec. 709 Image Controls False Color Focus Peaking Pixel Zoom
Environmental	Operating Temperature 32 to 113°F Operating Humidity 0 to 95% (Non-Condensing) Storage Temperature 0 to 120°F Storage Humidity 0 to 95%
Gamma Curve	DCI-P3, Rec709
General	Material of Construction Aluminum Steel Dimensions 7.4 × 4.7 × 1.1″ Weight 21.0 oz

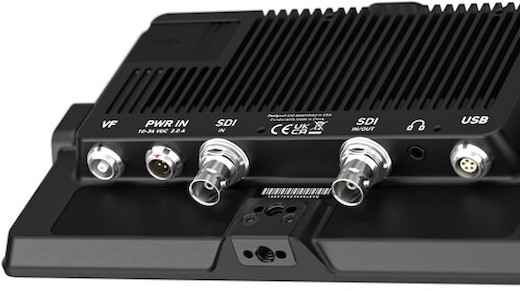

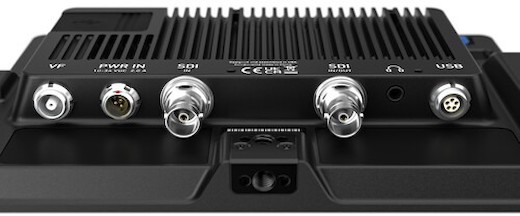

Inputs/Outputs	Video I/O 1 x CoaXPress Input 1 x BNC Input 1 x BNC Input/Output Embedded Audio SDI Audio I/O 1 × 1/8" / 3.5 mm Output Built-In Speaker None Power I/O 1 x LEMO 3-Pin (2 A / 34 VDC) Input Other I/O 1 x LEMO 5-Pin 1 x USB-C Media/Memory Card Slot None Wi-Fi None Bluetooth None
Item Type	Camera and Camera Control
Mount	Unknown
Mounting	4 x ARRI Anti-Twist 1/4"-20
Power	DC Input Power 10 to 34 VDC at 2 A
Video Format	SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 SDI (10/12-Bit 4:4:4 RGB) DCI 2K: 30/29.97/25/24/23.98 1080p: 30/29.97/25/24/23.98

Includes

ARRI CCM-1 Camera Control
Sun Hood
Monitor Mount
Porta Brace PB-B812 Stuff Sack
Viewfinder Cable 1.5ft
24V 3-Pin Fischer Male to Female 1.6ft

Specifications

Brand	ARRI
Camera Type	Camcorder
Display	Panel Type TFT LCD Display Size 7.0" Screen Area 6.0 × 3.7″ Resolution 1920 × 1200 Aspect Ratio 16:10 Viewing Angle Horizontal: 160° Vertical: 160° Touchscreen Yes Maximum Brightnes 1300 nits / cd/m2 Bit Depth / Color Support 10-Bit (1.07 Billion Colors) HDR Compatibility None Pixels Per Inch (ppi) 322 ppi Response Time 25 ms Color Gamut 100% DCI-P3 100% Rec. 709 Image Controls False Color Focus Peaking Pixel Zoom
Environmental	Operating Temperature 32 to 113°F Operating Humidity 0 to 95% (Non-Condensing) Storage Temperature 0 to 120°F Storage Humidity 0 to 95%
Gamma Curve	DCI-P3, Rec709
General	Material of Construction Aluminum Steel Dimensions 7.4 × 4.7 × 1.1″ Weight 21.0 oz
Inputs/Outputs	Video I/O 1 x CoaXPress Input 1 x BNC Input 1 x BNC Input/Output Embedded Audio SDI Audio I/O 1 × 1/8" / 3.5 mm Output Built-In Speaker None Power I/O 1 x LEMO 3-Pin (2 A / 34 VDC) Input Other I/O 1 x LEMO 5-Pin 1 x USB-C Media/Memory Card Slot None Wi-Fi None Bluetooth None
Item Type	Camera and Camera Control
Mount	Unknown
Mounting	4 x ARRI Anti-Twist 1/4"-20
Power	DC Input Power 10 to 34 VDC at 2 A
Video Format	SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 SDI (10/12-Bit 4:4:4 RGB) DCI 2K: 30/29.97/25/24/23.98 1080p: 30/29.97/25/24/23.98

Resources

Quick Start Guide
