ARRI ALEXA Mini LF Body

$2500.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

ARRI Alexa Mini LF
White Radio antenna
Wi-Fi antenna
USB flash drive
AC adapter
3-prong power cable

Resources

ARRI ALEXA Mini LF Body

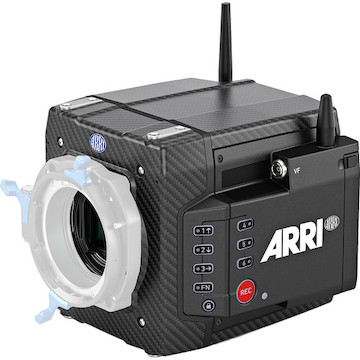

The ARRI ALEXA Mini LF is a large format sensor update to the ARRI Alexa Mini that is now capable of recording up to 4.5K ARRIRAW to proprietary Codex media. This rental is for the body only. Key features include:

ALEXA-line image quality from a native-4K-capable sensor
4K UHD video capture in a variety of ProRes codecs
Open Gate and ARRIRAW licenses
Lens mount not included

Body Only. This rental is only for the ARRI Alexa Mini LF Body, which isn’t an operable camera without additional accessories. This barebones option might be for you if your Alexa is at a repair facility or if you’re looking for a backup camera. At the very least, it’ll need a lens mount like the ARRI LPL Lens Mount for ALEXA Mini / Mini LF w/ PL Adapter, a monitoring solution like the MVF-2 Viewfinder, media, and a lens to be operational. If you’re looking for a full kit check out the ARRI ALEXA Mini LF Premium Gold Mount Kit and ARRI ALEXA Mini LF Premium V-Mount Kit. We also have the dedicated ARRI ALEXA LF Bundle Accessory Set available.

Mini Goes Full Format. The ALEXA Mini LF utilizes the same ALEV 3 A2X large-format sensor found in the more robust Alexa LF, which provides low noise at its native ISO 800, natural skin tones, true colors, and 14+ stops of dynamic range. Motorized full spectrum internal NDs cut light in two-, four-, and six-stop increments without color shift. Please note, the Mini LF could be mistaken for the ARRI Alexa Mini at a glance, but the larger full-frame sensor, left side media bay, and rear-mounted accessory ports will affect accessory and workflow compatibility.

Record Up to 4.5K ARRIRAW. ARRIRAW recording is now included out of the box and capable of capturing the full, open gate 4448 × 3096 pixel area of the sensor at up to 40 fps to proprietary Codex Compact Drive media. Straight-to-ProRes recording is of course still an option up to UHD 4K/60p or 1080/90p.

Production Workhorse. Features like two channel internal mics for scratch audio, MXF containers for improved metadata access, and High Density Encoding with Codex compact drives (not included) for shorter transfer times help streamline your production workflow.

Durable and Reliable. Designed for versatile use on gimbals and other applications where compact size and scale are required, the housing is built from carbon fiber and manufactured for the most rugged of applications. The ALEXA Mini LF proudly upholds the ARRI’s tradition of stable cameras that can be counted on for any shoot.

Sam's Take

Video Tech

If you’re a fan of the original ARRI Alexa Mini, the new Alexa Mini LF should be both familiar and exciting. The form factor remains the same, but the sensor has been upgraded to the same ALEV 3 A2...

Q & A

Is there an available accessory kit for this camera?

Yeah! We have the ALEXA LF Bundle Accessory Set available for rent.

Are there any known issues with this product?

We’ve recently had a few reports of camera errors occurring as a result of pulling a drive from the Mini LF soon after ending a recording session. ARRI recommends waiting at least ten seconds after ending a recording session before removing a compact drive from the camera.
In the event you pull a drive too soon after a recording session and the camera freezes or displays an error message, ARRI recommends remounting the drive and power cycling the camera with the drive inside.
While we don’t expect this issue to impact most users, we will continue to monitor the situation in hopes that ARRI will come to a long term solution in the near future. If you have any questions regarding the ARRI Alexa Mini LF or Codex Compact Drive system, please contact us and a tech will be happy to discuss these errors in greater detail.

Do I need anything else?

This rental is for the ARRI Alexa Mini LF Body only. It will, at the very least, need media and a lens mount to be operational.

Does this rental include the ARRI Look Library?

The ARRI Look Library is not currently available on the Mini LF and there doesn’t seem to be any plan to implement it in the future.

Is there a web remote for this camera?

The Alexa Mini LF web remote is currently in Beta but should be fully supported following a future firmware update.

Which memory cards can I use with this camera?

The ARRI Alexa Mini LF is only compatible with Codex Compact Drives.

Do I need a certificate of insurance or a deposit to rent this item?

You’ll need a certificate of insurance, LensCap+, or a deposit to rent this item.

Specifications

Audio Inputs	1x LEMO 6pin balanced stereo line in (Line input max. level +24dBu correlating to 0dBFS) Built-in microphones for scratch audio
Audio Outputs	SDI (embedded) 3.5 mm Headphones out on MVF-2
Audio Recording	4 channel linear PCM (24 bit, 48 kHz)
Brand	ARRI
Camcorder Type	Cinema
Camera Type	Camcorder
Color Output	Rec 709 Rec 2020 Log C Custom Look (ARRI Look File ALF-2)
Exposure and Focus Tools	False Color, Zebra, Zoom, Aperture, and Color Peaking
Filters	Built-in motorized FSND filters 0.6, 1.2, 1.8 Fixed optical low pass, UV, IR filter
Flange Focal Depth	LPL mount: 44mm With PL to LPL adapter: 52mm
Frame Rates	4.5K LF 3:2 Open Gate – 4.5K 0.75 – 40 fps 4.5K LF 2.39:1 – 4.5K 0.75 – 60 fps 4.3K LF 16:9 – UHD 0.75 – 40 fps 4.3K LF 16:9 – HD 0.75 – 75 fps 3.8K LF 16:9 – UHD 0.75 – 60 fps 3.8K LF 16:9 – 2K 0.75 – 90 fps 3.8K LF 16:9 – HD 0.75 – 90 fps 3.4K S35 3:2 – 3.4K 0.75 – 60 fps 3.2K S35 16:9 – 3.2K 0.75 – 75 fps 2.8K S35 4:3 – 2.8K 0.75 – 75 fps 2.8K S35 16:9 – HD 0.75 – 100 fps
Height	5.5"
Image Outputs	1x proprietary signal output for MVF-2 viewfinder on VF CoaXPress connector 2x SDI outputs on BNC connectors, both outputs carry uncompressed video with embedded audio and metadata. SDI 1 HD only, Processed or Clean, with or without a look file applied 1.5G 422 HD (SMPTE ST292-1, up to 30 fps, p or psf) 3G 422 HD (SMPTE ST425-1, up to 60 fps, p) 3G 444 HD (SMPTE ST425-3, up to 30 fps, p) SDI 2 HD or UHD, Clean only, with or without a look file applied, or SDI 1 clone 1.5G 422 HD (SMPTE ST292-1, up to 30 fps, p or psf) 3G 422 HD (SMPTE ST425-1, up to 60 fps, p) 3G 444 HD (SMPTE ST425-3, up to 30 fps, p) 6G 422 UHD (SMPTE ST2081-10, up to 30 fps, p) “Clean” is an image without surround view or overlays (status, false color, zebra, framelines, etc.), “Processed” is an image supporting surround view and overlays.

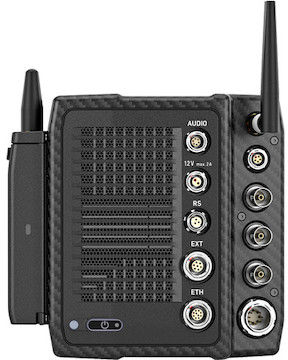

Interface	1x LEMO 5pin LTC Timecode In/Out 1x LEMO 10pin Ethernet for remote control and service 1x BNC SYNC IN 1x LEMO 7pin EXT multi purpose accessory interface w. RS pin and 24V power output 1x LEMO 4pin LBUS (on lens mount) for lens motors, daisy chainable 1x USB 2.0 in media bay (for user setups, look files etc.)
Item Type	Camera and Cinema Cameras
Length	7.4"
Lens Squeeze Factors	1.00, 1.25, 1.30, 1.50, 1.65, 1.80, 2.00
Mfr. Model Number	K1.0024074
Mount	Unknown
Operating Temperature	-4° F to +113° F @ 95% relative humidity max, non condensing, splash and dust proof through sealed electronics
Power Input	1x LEMO 8pin (11.0 – 34.0 V DC)
Power Output	1x Fischer 3pin 24V RS (3.0 A) 1x LEMO 2pin 12V (1.0 A) 1x LEMO 7pin EXT 24V (1.0 A) 1x LEMO 4pin LBUS 24V (2.0 A, on lens mount) 1x LEMO 6pin AUDIO 12V 1x LEMO 10pin ETH 24 V (0.5 A)
Recommended For	Premium Cine
Recording Formats	MXF/ARRIRAW MXF/Apple ProRes 4444 XQ MXF/Apple ProRes 4444 MXF/Apple ProRes 422 (HQ)
Recording Mode	Standard real-time recording
Sensor Dimensions	36.70 × 25.54 mm / 1.444 × 1.005″ Ø 44.71 mm / 1.760"
Sensor Type	Large Format ARRI ALEV III (A2X) CMOS sensor with Bayer pattern color filter array
Shutter Speed	5.0°- 356° or 1s – 1/8000s
Shutter Type	Electronic
Viewfinder Resolution	1920 × 1080
Viewfinder Size	4.0"
Viewfinder Type	OLED viewfinder display LCD flip-out monitor
Weight	6.0 lbs.
White Balance	Manual and auto white balance, adjustable from 2000K to 11000K in 10K steps Color correction adjustable range from -16 to +16 CC 1 CC corresponds to 035 Kodak CC values or 1/8 Rosco values
Width	5.6"
Wireless	Built-in Wi-Fi module (IEEE 802.11b/g) Built-in White Radio for ARRI lens and camera remote control
