| Audio Inputs |
1x LEMO 6pin balanced stereo line in (Line input max. level +24dBu correlating to 0dBFS)
Built-in microphones for scratch audio |
| Audio Outputs |
SDI (embedded)

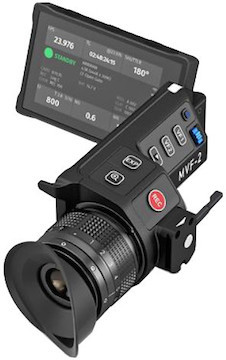

3.5 mm Headphones out on MVF-2 |
| Audio Recording |
4 channel linear PCM (24 bit, 48 kHz) |
| Brand |
ARRI |
| Camcorder Type |
Cinema |
| Camera Type |
Camcorder |
| Color Output |
Rec 709
Rec 2020
Log C
Custom Look (ARRI Look File ALF-2) |
| Exposure and Focus Tools |
False Color, Zebra, Zoom, Aperture, and Color Peaking |
| Filters |
Built-in motorized FSND filters 0.6, 1.2, 1.8
Fixed optical low pass, UV, IR filter |
| Flange Focal Depth |

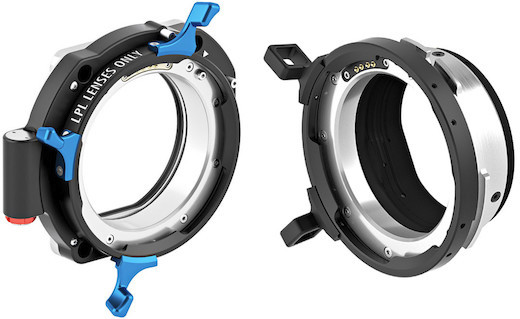

LPL mount: 44mm
With PL to LPL adapter: 52mm |
| Frame Rates |
4.5K LF 3:2 Open Gate – 4.5K
0.75 – 40 fps
4.5K LF 2.39:1 – 4.5K
0.75 – 60 fps
4.3K LF 16:9 – UHD
0.75 – 40 fps
4.3K LF 16:9 – HD
0.75 – 75 fps
3.8K LF 16:9 – UHD
0.75 – 60 fps
3.8K LF 16:9 – 2K
0.75 – 90 fps
3.8K LF 16:9 – HD
0.75 – 90 fps
3.4K S35 3:2 – 3.4K
0.75 – 60 fps
3.2K S35 16:9 – 3.2K
0.75 – 75 fps
2.8K S35 4:3 – 2.8K
0.75 – 75 fps
2.8K S35 16:9 – HD
0.75 – 100 fps |
| Height |
5.5" |
| Image Outputs |
1x proprietary signal output for MVF-2 viewfinder on VF CoaXPress connector
2x SDI outputs on BNC connectors, both outputs carry uncompressed video with embedded audio and metadata.
SDI 1
HD only, Processed or Clean, with or without a look file applied
1.5G 422 HD (SMPTE ST292-1, up to 30 fps, p or psf)
3G 422 HD (SMPTE ST425-1, up to 60 fps, p)
3G 444 HD (SMPTE ST425-3, up to 30 fps, p)
SDI 2
HD or UHD, Clean only, with or without a look file applied, or SDI 1 clone
1.5G 422 HD (SMPTE ST292-1, up to 30 fps, p or psf)
3G 422 HD (SMPTE ST425-1, up to 60 fps, p)
3G 444 HD (SMPTE ST425-3, up to 30 fps, p)
6G 422 UHD (SMPTE ST2081-10, up to 30 fps, p)
“Clean” is an image without surround view or overlays (status, false color, zebra, framelines, etc.), “Processed” is an image supporting surround view and overlays. |
| Interface |
1x LEMO 5pin LTC Timecode In/Out
1x LEMO 10pin Ethernet for remote control and service
1x BNC SYNC IN
1x LEMO 7pin EXT multi purpose accessory interface w. RS pin and 24V power output
1x LEMO 4pin LBUS (on lens mount) for lens motors, daisy chainable
1x USB 2.0 in media bay (for user setups, look files etc.) |
| Item Type |
Camera, Package, and Cinema Cameras |
| Length |
7.4" |
| Lens Squeeze Factors |
1.00, 1.25, 1.30, 1.50, 1.65, 1.80, 2.00 |
| Mount |
PL Mount |
| Operating Temperature |
-4° F to +113° F @ 95% relative humidity max, non condensing, splash and dust proof through sealed electronics |
| Package Type |
ARRI Video |
| Power Input |
1x LEMO 8pin (11.0 – 34.0 V DC) |
| Power Output |
1x Fischer 3pin 24V RS (3.0 A)
1x LEMO 2pin 12V (1.0 A)
1x LEMO 7pin EXT 24V (1.0 A)
1x LEMO 4pin LBUS 24V (2.0 A, on lens mount)
1x LEMO 6pin AUDIO 12V
1x LEMO 10pin ETH 24 V (0.5 A) |
| Recording Formats |
MXF/ARRIRAW
MXF/Apple ProRes 4444 XQ
MXF/Apple ProRes 4444
MXF/Apple ProRes 422 (HQ) |
| Recording Mode |
Standard real-time recording |
| Sensor Dimensions |
36.70 × 25.54 mm / 1.444 × 1.005″
Ø 44.71 mm / 1.760" |
| Sensor Type |
Large Format ARRI ALEV III (A2X) CMOS sensor with Bayer pattern color filter array |
| Shutter Speed |
5.0°- 356° or 1s – 1/8000s |
| Shutter Type |
Electronic |
| Viewfinder Resolution |
1920 × 1080 |
| Viewfinder Size |
4.0" |
| Viewfinder Type |
OLED viewfinder display LCD flip-out monitor |
| Weight |
6.0 lbs. |
| White Balance |
Manual and auto white balance, adjustable from 2000K to 11000K in 10K steps Color correction adjustable range from -16 to +16 CC 1 CC corresponds to 035 Kodak CC values or 1/8 Rosco values |
| Width |
5.6" |
| Wireless |
Built-in Wi-Fi module (IEEE 802.11b/g) Built-in White Radio for ARRI lens and camera remote control |
