Blackmagic URSA Broadcast G2 Studio Fiber Kit (B4)

The Blackmagic URSA Broadcast G2 Studio Fiber Kit (B4) provides you with converters and accessories designed for the included Blackmagic URSA Broadcast G2 Camera – B4. Key features include:

Camera and studio fiber converters
4K camera with native B4 mount and servo support via integrated 12-pin connector
Electronic viewfinder with 7” display
Battery and media not included

Below, you’ll find individual links to each base product that we include with this rental, and brief descriptions of each item! Feel free to click on those highlighted links for additional information and specifications.

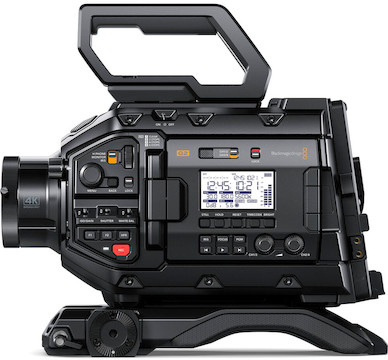

Budget-Friendly Broadcast Camera. The Blackmagic URSA Broadcast G2 Camera is more than capable of functioning as a broadcast camera with ENG camera controls and a low-light sensor, but why stop there? Tack on an advanced YRGB color corrector, full remote camera control, support for a wide range of lenses, high dynamic range at 13 stops, and support for Blackmagic RAW recording, and you’ve got a studio and field powerhouse, capable of performing in almost any situation. We also carry the Blackmagic URSA Broadcast G2 w/ RAWLITE OLPF Upgrade B4 for reduced moire and aliasing.

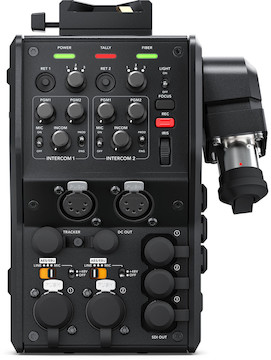

Eat Your Fiber! The Blackmagic Design Camera Fiber Converter attaches directly to the back of the camera or the Studio Fiber Converter via a separately available SMPTE fiber optic cable for connection up to 1.6 miles away. This attachment moves all necessary functions to the back of the camera for ease of operator access.

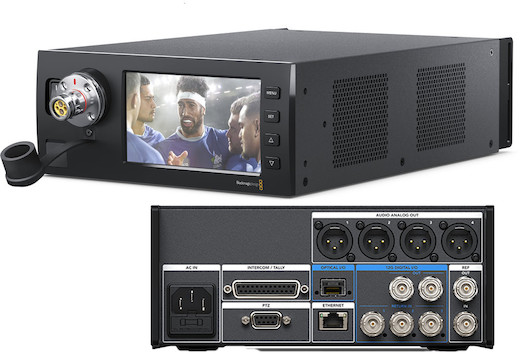

Studio Fiber Converter. The Studio Fiber Converter offers a variety of connectors designed to ensure a seamless production. On the rear panel, you’ll find SDI connections for HD or UHD 4K video and HD return feeds, four XLR connectors for audio, reference in and out, PTZ and intercom/tally on D connectors, Ethernet, and SFP fiber. The front panel offers a single MPTE fiber connector for the Camera Fiber Converter and a 5-inch display.

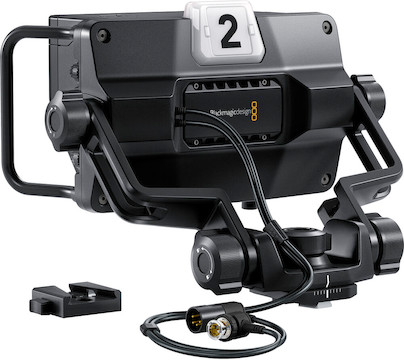

Studio-Style Ursa Viewfinder. The Blackmagic Design URSA Studio Viewfinder G2 is designed for Blackmagic’s compact URSA line of cameras like the Blackmagic URSA Broadcast G2 Camera – B4 and Ursa Mini Pro.

ENG-Style Shooting from a Cinema Camera. Enjoy the comfort and balance of an ENG-style shoulder-mount configuration with all the benefits of a large-sensor cinema-style camera with the Blackmagic Design Shoulder Mount Kit for URSA Mini. The shoulder pad adds support for 15mm rods (a pair of 9-inch rods is included) and accessories including matte boxes, follow focuses, and front handles to complete your kit. It also adds the option of using VCT-based quick release plates just like a traditional ENG camera.

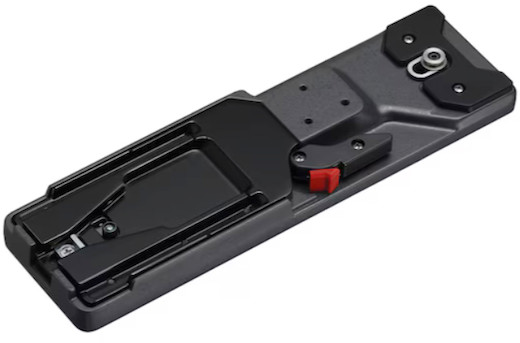

Tripod Adapter. The Sony VCT-14 Quick-Release Tripod Adapter is designed for accepting wedge-style mounts. This quick-release system was designed for serious loads, so there’s no need to worry about the security of your camera rig here.

Q & A

Do you rent any lenses for this system?

Yep! We rent the Fujinon XA20SX8.5BERM-K3 B4 Lens for 2/3 Sensors and we also rent the Blackmagic URSA Broadcast (B4) w/ Fujinon LA16x8BRM-XB1A kit to get you going. If you need help piecing together a kit, please contact us and we’ll get you pointed in the right direction.

Does this rental include DaVinci Resolve?

Due to copyright, we can’t include DaVinci Resolve with rentals. You may download DaVinci Resolve for free here.

Are there any recording limitations with using SD memory?

Raw HD and 4K/30p ProRes can be recorded to UHS-II SD memory cards. You can find a list of manufacturer-recommended SD cards and formats they support here.
If you’re looking to record in higher resolutions and frame rates, you’ll need to use CFast 2.0 memory cards. You can find a list of manufacturer-recommended CFast 2.0 cards and formats they support here.

Will this camera work with any B4 lens?

This camera should be compatible with most B4 mount broadcast lenses for 2/3-inch systems. A broadcast lens control connector is also available for lens power and control of compatible lenses.
There may be limited support for analog B4 lenses. If you have any specific compatibility concerns, reach out to us here.

Is this camera available to rent with an EF lens mount?

At this time we only offer the Blackmagic URSA Broadcast G2 Camera with a B4 mount option. If you’re interested in renting an EF version of this camera, please contact us.

Are there any recording limitations with this B4-mount version of the URSA Broadcast G2?

Yes. Recording will be limited to UHD 4K or lower resolutions when renting this B4-mount version of the Broadcast G2.

Specifications

Brand	Blackmagic
Camera Type	Camcorder
Dynamic Range	13 Stops
Inputs/Outputs	Video Inputs 1x BNC (12G-SDI) USB Type-C Data Input 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input BNC Reference, Sync, Timecode Data Input Video Outputs 2x BNC (12G-SDI) clean output & monitor output USB Type-C USB 3.1 Gen 2 Video Output 2.5 mm LANC Control Output 12-Pin Hirose Camera Interface Control Output 1/8" / 3.5 mm TRRS Headphone/Microphone Headphone Input/Output
Item Type	Camera, Package, and Broadcasting Cameras
Microphone	2x built-in stereo cardioid microphones (-10dB pad and low-cut filter)
Mount	B4
Package Type	Blackmagic Video
Power Output	12V output (4-pin XLR) for EVF 4-Pin XLR (12 to 20 VDC) Output 12-pin molex connector
Video Formats	Blackmagic RAW 10-Bit 3840 × 2160 at 60 fps 1920 × 1080 at 150 fps ProRes 422/ProRes 422HQ 3840 × 2160p up to 60 fps 1920 × 1080p up to 60 fps 1920 × 1080p at 120 fps H.265 3840 × 2160p up to 60 fps H.264 1920 × 1080p up to 60 fps

See All

Includes

Specifications

Brand	Blackmagic
Camera Type	Camcorder
Dynamic Range	13 Stops
Inputs/Outputs	Video Inputs 1x BNC (12G-SDI) USB Type-C Data Input 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input BNC Reference, Sync, Timecode Data Input Video Outputs 2x BNC (12G-SDI) clean output & monitor output USB Type-C USB 3.1 Gen 2 Video Output 2.5 mm LANC Control Output 12-Pin Hirose Camera Interface Control Output 1/8" / 3.5 mm TRRS Headphone/Microphone Headphone Input/Output
Item Type	Camera, Package, and Broadcasting Cameras
Microphone	2x built-in stereo cardioid microphones (-10dB pad and low-cut filter)
Mount	B4
Package Type	Blackmagic Video
Power Output	12V output (4-pin XLR) for EVF 4-Pin XLR (12 to 20 VDC) Output 12-pin molex connector
Video Formats	Blackmagic RAW 10-Bit 3840 × 2160 at 60 fps 1920 × 1080 at 150 fps ProRes 422/ProRes 422HQ 3840 × 2160p up to 60 fps 1920 × 1080p up to 60 fps 1920 × 1080p at 120 fps H.265 3840 × 2160p up to 60 fps H.264 1920 × 1080p up to 60 fps

See All
