Shure PSM 1000 Dual-Channel Transmitter w/ P10R+ (G10)

$311.00
/
7 Day

Rental

Interested in purchasing?

Includes

Resources

  • PSM1000 User Guide
  • Shure PSM 1000 Dual-Channel Transmitter w/ P10R+ (G10)

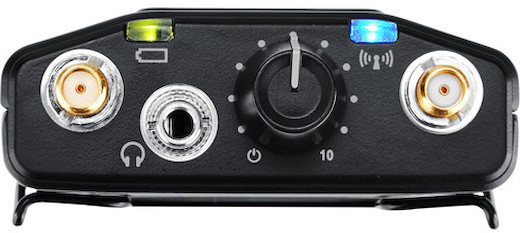

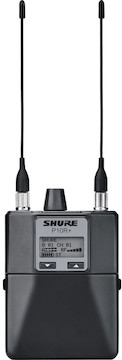

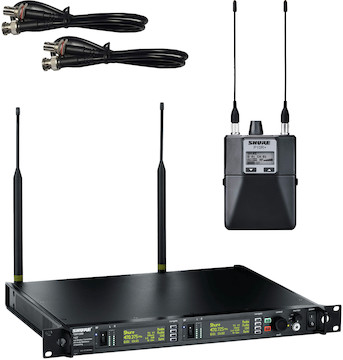

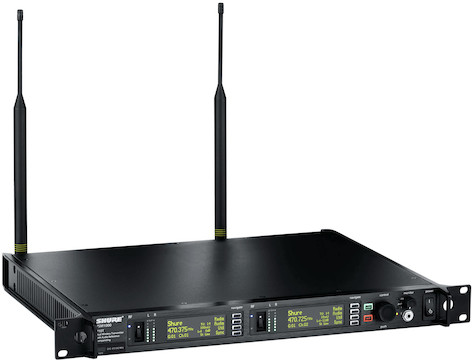

    The Shure PSM 1000 Dual-Channel Transmitter w/ P10R+ (G10) provides you with the P10T Transmitter and P10R+ Receiver. Key features include:

    • Networkable via Ethernet

    • 72 MHz tuning bandwidth

    • Digital encoder

    • Automatic gain control

    Read More

    Q & A

  • Does this rental include rack-mounting brackets?
  • Does this rental include an ethernet cable?
    • This rental doesn’t include an ethernet cable. If you need one, you can find some options here.

  • Specifications

    Brand

    Shure

    Item Type

    Audio and In-Ear

    Receiver

    RF Filter Range

    • Tri-Band: -3dB at 30.5mHz from the center frequency of each band
    RF Gain
    • Active: 31dB (adjusts RF sensitivity to provide more RF dynamic range)
    RF Sensitivity
    • 2.2μV (20dB SINAD)
    Squelch Threshold
    • 22dB SINAD (±3dB), default setting
    Adjacent Channel Rejection
    • >70dB
    Intermodulation Attenuation
    • >70dB
    Blocking
    • >80dB
    Image Rejection
    • >90dB
    Audio Output Power
    • 100mW per output (1kHz @ <1% distortion, peak power, @ 16 ohms)
    Minimum Load Impedance
    • 4 ohms
    Output Impedance
    • <1 ohm
    4-Band Parametric Equalizer
    • Low-Shelf selectable gain: ±2, ±4, ±6dB @ 100Hz
    • Low-Mid selectable gain: ±2, ±4, ±6dB @ 160, 250, 400, 500, 630Hz
    • Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
    • High-Mid selectable gain: ±2, ±4, ±6dB @ 1, 1.6, 2.5, 4, 6.3kHz
    • Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
    • High-Shelf selectable gain: ±2, ±4, ±6dB @ 10kHz
    Volume Limiter
    • Selectable: 0 to -48dB in 3dB steps
    Volume Lock
    • Selectable: 0 to -70dB
    • Limits Volume adjustment knob
    • Selected Value Analogous to Volume knob increment

    Transmitter

    RF Output Power

    • Selectable: 10, 50, 100mW (20dBm)
    RF Output Impedance
    • 50 ohms (typical)
    Power Requirement
    • Input: 100-240V AC, 50/60Hz, 0.5A max (5.5 with outlet loaded)
    • Output: 100-240V AC, 50/60Hz, 5A max, unswitched
    Audio Input
    • Combination XLR-1/4" / 6.3mm TRS
    Polarity
    • XLR: Non-inverting (pin 2 positive with respect to pin 3)
    • 1/4": Tip positive with respect to ring
    Configuration
    • Electronically balanced
    Impedance
    • 70.2 kilohms (actual)
    Nominal Input Level
    • Switchable: +4dBu, -10dBV
    Maximum Input Level
    • 4dBu: +29.2dBu
    • -10dBV: +12.2dBu
    Pin Assignments
    • XLR: 1=ground, 2=hot, 3=cold
    • 1/4" TRS: Tip=hot, Ring=cold, Sleeve=ground
    Phantom Power Protection
    • Up to 60V DC
    RF Carrier Frequency Range
    • G10: 470-542MHz
    Compatible Frequencies
    • Per Band: 39
    Tuning Bandwidth
    • 72mHz
    Operating Range
    • 300’ (environment dependent)
    Frequency Response
    • 35Hz to 15kHz (±1dB)
    Signal to Noise Ratio
    • 90dB (typical) A-weighted
    Total Harmonic Distortion (THD)
    • Ref. ±34kHz deviation at 1kHz <0.5% (typical)
    Companding
    • Patented Shure audio reference companding
    Spurious Rejection
    • Ref. 12dB SINAD: >80dB (typical)
    Frequency Stability
    • ±2.5ppm
    MPX Pilot Tone
    • 19kHz (±0.3kHz)
    Modulation
    • FM (±34kHz deviation at 1kHz)
    • MPX Stereo Ref.
    Operating Temperature
    • 0-135°F
