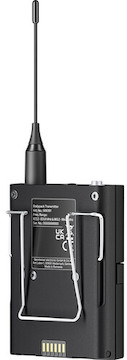

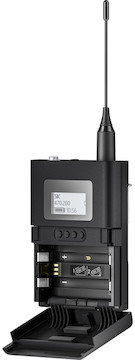

Sennheiser EW-DX SK Bodypack Transmitter

$73.00
/
7 Day

Rental

Interested in purchasing?

Includes

Sennheiser EW-DX SK Bodypack Transmitter

The Sennheiser EW-DX SK Bodypack Transmitter is a wireless audio transmitter that’s compatible with EW-DW wireless receivers. This transmitter can handle a wide variety of sound sources. Key features include:

  • Frequency Range Q1-9 (470 – 550 MHz)

  • 134 dB dynamic range, 24-bit audio

  • 12-Hour rechargeable battery

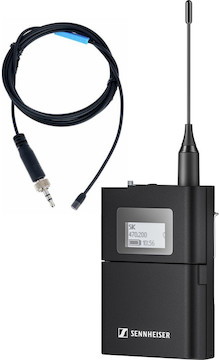

  • Includes MKE 2 lavalier mic

Read More

Q & A

  • Is a receiver required to operate this transmitter?
  • Specifications

    Audio Type

    Lavalier Mic

    Brand

    Sennheiser

    General

    Lav Length

    • 5.2’
    Lav Weight
    • 0.6 oz.
    Mfr. Model Number
    • EWDX SK (Q19)
    Transmitter Dimensions (W x H x D)
    • 2.5 × 3.3 × 0.8″
    Transmitter Weight
    • 4.2 oz. (without batteries)

    Item Type

    Audio and Wireless Audio

    Microphone

    Microphone Type

    • Lavalier
    Color
    • Black
    Sound Field
    • Mono
    Capsule
    • Electret condenser
    Polar Pattern
    • Omnidirectional
    Frequency Range
    • 20 Hz to 20 kHz
    Equivalent Noise Level
    • 26 dB A-weighted
    Maximum SPL
    • 142 dB SPL
    Sensitivity
    • 5 mV/Pa at 1 kHz
    Outputs
    • 1x 3.5 mm TRS male (lockable, on attached cable)
    Operating Voltage
    • 7.5V

    Transmitter

    Transmitter Type

    • Bodypack
    Sample Rate
    • 24-bit
    RF Output Power
    • 10 mW (ERP)
    • 10 mW (EIRP)
    Audio I/O
    • 1x 3.5mm TRS female input (lockable)
    Audio Input Level
    • 2 to 4.35V
    Auto-Level Control
    • No
    Built-In Recorder
    • No
    RF Frequency Band
    • Q1-9: 470.2 to 550 MHz
    RF Bandwidth
    • 80 MHz
    Frequency Response
    • 20 Hz to 20 kHz -3 dB
    Max Operating Range
    • 328.1’ line of sight
    • 120’ Bluetooth (syncing, app control)
    Antenna
    • 1x flexible whip, fixed
    Power
    • BA 70 battery
    • Optional alkaline AA batteries

    Includes

    Specifications

    Audio Type

    Lavalier Mic

    Brand

    Sennheiser

    General

    Lav Length

    • 5.2’
    Lav Weight
    • 0.6 oz.
    Mfr. Model Number
    • EWDX SK (Q19)
    Transmitter Dimensions (W x H x D)
    • 2.5 × 3.3 × 0.8″
    Transmitter Weight
    • 4.2 oz. (without batteries)

    Item Type

    Audio and Wireless Audio

    Microphone

    Microphone Type

    • Lavalier
    Color
    • Black
    Sound Field
    • Mono
    Capsule
    • Electret condenser
    Polar Pattern
    • Omnidirectional
    Frequency Range
    • 20 Hz to 20 kHz
    Equivalent Noise Level
    • 26 dB A-weighted
    Maximum SPL
    • 142 dB SPL
    Sensitivity
    • 5 mV/Pa at 1 kHz
    Outputs
    • 1x 3.5 mm TRS male (lockable, on attached cable)
    Operating Voltage
    • 7.5V

    Transmitter

    Transmitter Type

    • Bodypack
    Sample Rate
    • 24-bit
    RF Output Power
    • 10 mW (ERP)
    • 10 mW (EIRP)
    Audio I/O
    • 1x 3.5mm TRS female input (lockable)
    Audio Input Level
    • 2 to 4.35V
    Auto-Level Control
    • No
    Built-In Recorder
    • No
    RF Frequency Band
    • Q1-9: 470.2 to 550 MHz
    RF Bandwidth
    • 80 MHz
    Frequency Response
    • 20 Hz to 20 kHz -3 dB
    Max Operating Range
    • 328.1’ line of sight
    • 120’ Bluetooth (syncing, app control)
    Antenna
    • 1x flexible whip, fixed
    Power
    • BA 70 battery
    • Optional alkaline AA batteries
