Sennheiser EW-DX MKE2 and 835-S Two Transmitters Kit (Q1-9)

Sennheiser EW-DX MKE2 and 835-S Two Transmitters Kit (Q1-9)

The Sennheiser EW-DX MKE2 and 835-S Two Transmitters Kit is a great choice for presentations, performances, weddings, and more. This bundle provides you with a bodypack and handheld transmitter, alongside their dedicated power system. Feel free to click and of the highlighted links below for additional information and specifications!

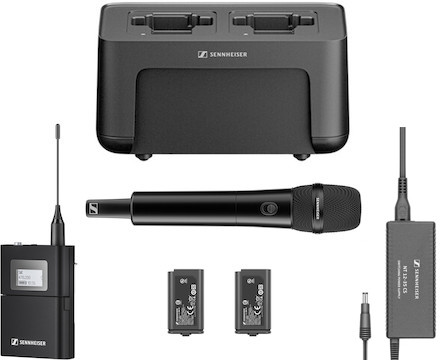

The Sennheiser EW-DX MKE2 and 835-S Two Transmitters Kit includes the following:

Q & A

  • Are receivers required to operate these transmitters?
    • Yes, every transmitter should have a corresponding receiver (or a dual-channel receiver setup). You will want to use either the Sennheiser EW-DX EM receiver or the Sennheiser EW-D EM receiver (this older model may not be compatible with some features of the EW-DX system). Also note that your two transmitters must not be on the same frequency.

  • Will an Ethernet cable be included with this rental?
    • No. You can find our selection of Ethernet cables to support PoE+ here!

  • Specifications

    Brand

    Sennheiser

    General

    Lav Length

    • 5.2’
    Lav Weight
    • 0.6 oz.
    Mfr. Model Number
    • Bodypack: EWDX SK (Q19)
    • Handheld: EWDX SKM (Q19)
    Transmitter Dimensions
    • Bodypack (W x H x D): 2.5 × 3.3 × 0.8″
    • Handheld (⌀ x H): 2″ × 10.55″
    Transmitter Weight
    • Bodypack: 4.2 oz. (without battery)
    • Handheld: .99 lb. (without battery, with module)

    Item Type

    Wireless Audio

    Microphone

    MKE2:
    Capsule

    • Electret condenser
    Equivalent Noise Level
    • 26 dB A-weighted
    Frequency Range
    • 20 Hz to 20 kHz
    Maximum SPL
    • 142 dB SPL
    Operating Voltage
    • 7.5V
    Outputs
    • 1x 3.5 mm TRS male (lockable, on attached cable)
    Polar Pattern
    • Omnidirectional
    Sensitivity
    • 5 mV/Pa at 1 kHz
    Sound Field
    • Mono
    MMD 835:
    Capsule
    • Dynamic
    Maximum SPL
    • 154 dB SPL
    Outputs
    • Concentric ring conductor plate
    Polar Pattern
    • Cardioid
    Sensitivity
    • 2.1 mV/Pa at 1 kHz

    Package Type

    Wireless Audio

    Transmitter

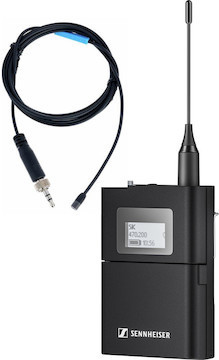

    Bodypack:
    Antenna

    • 1x flexible whip, fixed
    Audio Input Level
    • 2 to 4.35V
    Audio I/O
    • 1x 3.5mm TRS female input (lockable)
    Auto-Level Control
    • No
    Built-In Recorder
    • No
    Frequency Response
    • 20 Hz to 20 kHz -3 dB
    Max Operating Range
    • 328.1’ line of sight
    • 120’ Bluetooth (syncing, app control)
    Power

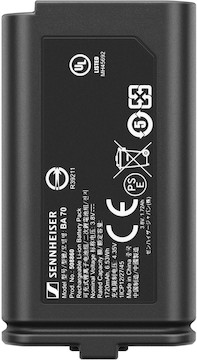

    • BA 70 battery
    • Optional alkaline AA batteries
    RF Bandwidth
    • 80 MHz
    RF Frequency Band
    • Q1-9: 470.2 to 550 MHz
    RF Output Power
    • 10 mW (ERP)
    • 10 mW (EIRP)
    Sample Rate
    • 24-bit
    Handheld:
    Antenna
    • Internal
    Audio Input Level
    • 2 to 4.35V
    Audio I/O
    • Sennheiser capsule interface (MMD 835 included)
    Auto-Level Control
    • No
    Built-In Recorder
    • No
    Frequency Response
    • 20 Hz to 20 kHz -3 dB
    Max Operating Range
    • 328.1’ line of sight
    • 120’ Bluetooth (syncing, app control)
    Power
    • BA 70 battery
    RF Bandwidth
    • 80 MHz
    RF Frequency Band
    • Q1-9: 470.2 to 550 MHz
    RF Output Power
    • 10 mW (ERP)
    • 10 mW (EIRP)
    Sample Rate
    • 24-bit
