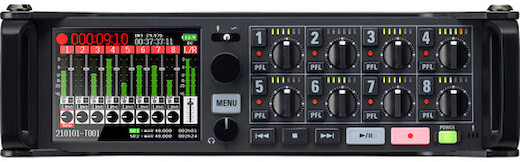

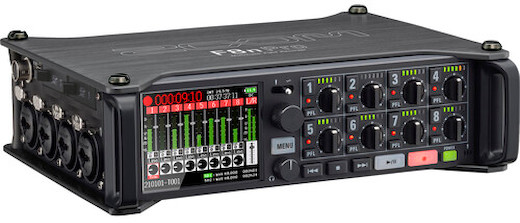

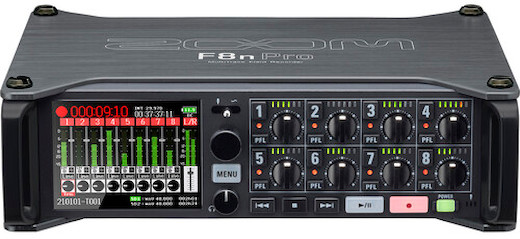

Zoom F8n Pro Multitrack Field Recorder

Zoom F8n Pro Multitrack Field Recorder

The Zoom F8n Pro is an advanced, bag-friendly multitrack field recorder designed for hassle-free high-quality audio capture. Key features include:

  • Dual A/D converters; 32-bit float recording

  • 8x high-gain, low noise preamps; ambisonic recording

  • Multiple output options; SMPTE timecode support

  • Dual SDXC card slots; Bluetooth control options

Read More

Q & A

  • Does this rental include TA3 XLR cables or an audio bag?
    • No. This rental is for the F8n Pro, ac adapter, and carrying case only. If you need an audio bag and cables, you can find them here in our F8n Pro Field Kit.

  • Does this rental include batteries?
  • Specifications

    Audio Type

    Field Recorder

    Brand

    Zoom

    Connectivity

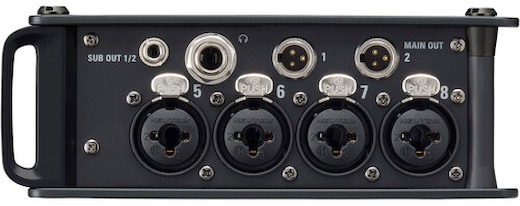

    Analog I/O

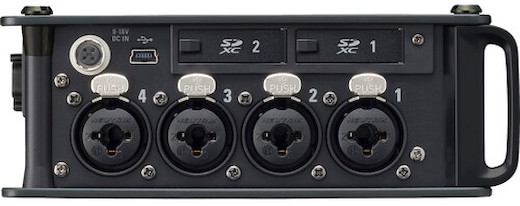

    • 8x Combo XLR-1/4" TRS Female Line/Mic Input (Lockable)
    • 1x Proprietary 10-Pin Mic Capsule Input
    • 2x TA3 3-Pin Male Balanced Line Output
    • 1x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
    • 1 × 1/4" TRS Female Unbalanced Headphone Output

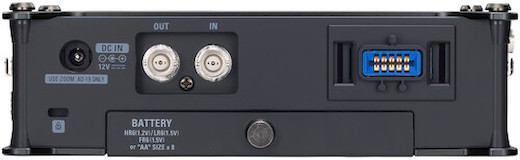

    Digital I/O
    • 1x BNC Timecode Input
    • 1 x BNC Timecode Output
    Phantom Power
    • +24 / 48 V (Selectable on Individual Inputs)
    Phantom Power Current
    • ≤ 10 mA per Channel
    Host Connection
    • 1x Mini-USB (USB 2.0)
    Audio Interface Capability
    • Multi-Track

    General

    Form Factor

    • Field Recorder
    Primary Application
    • Audio for Video
    Number of Tracks
    • WAV: 10 (8 Inputs + Stereo Mix)
    • MP3: 2
    Number of Input Channels
    • 8
    Max Sample Rate/Resolution
    • 192 kHz / 24-Bit
    Microphone
    • Built-In Slate Mic
    Number of Mic Preamps
    • 8
    Built-In Speaker
    • No
    Display
    • 2.4"
    • Color LCD (Backlit)

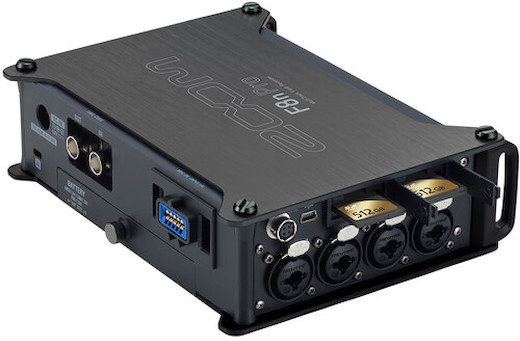

    Memory Card Support
    • SDHC (4 GB to 32 GB)
    • SDXC (64 GB to 1 TB)
    Internal Storage
    • None
    Special Features
    • Pre-Record Buffer, Remote Control Capable, Slate Function (Remote Available Separately)

    Item Type

    Audio and Recorders

    Mfr. Model Number

    ZF8NPRO

    Performance

    Frequency Response

    • Mic/Line Inputs: 20 Hz to 60 kHz +0.5/-1 dB (at 192 kHz)
    Gain/Trim Range
    • Mic Inputs: +10 to +75 dB
    • Line Inputs: -10 to +55 dB
    Max Input Level
    • Mic Inputs: +4 dBu (Limiter On, at 0 dBFS)
    • Line Inputs: +24 dBu (at 0 dBFS)
    Max Output Level
    • Outputs: +24 dBu
    • Aux Outputs: +10 dBV
    Headphone Output Power
    • 100 mW per Channel into 32 Ohms
    Dynamic Range
    • A/D Converters: 113 dBA
    • D/A Converters: 105 dBA
    Impedance
    • Mic Inputs: ≥3 Kilohms
    • Line Inputs: ≥5 Kilohms
    • Balanced Outputs: ≤150 Ohms
    • Aux Outputs: ≤100 Ohms
    • Headphone Outputs: ≤18 Ohms
    • BNC Inputs: 4.6 Kilohms
    • BNC Outputs: ≤50 Ohms
    EIN
    • ≤-127 dBu (A-Weighted)

    Physical

    Included Accessories

    • None

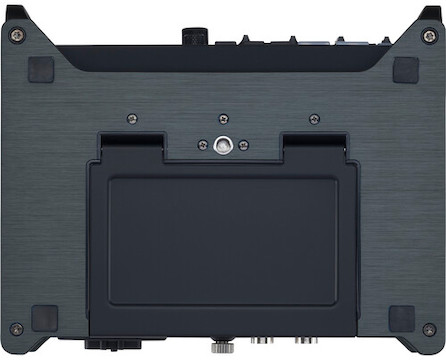

    Mounting Options
    • 1/4"-20 Female (Bottom)
    Dimensions (L x W x H)
    • 7 × 5.5 × 2.1″
    Weight
    • 2.6 lbs.

    See All

    Includes

    • Zoom F8n Pro Recorder
    • AC adapter
    • USB 2.0 Type A to Mini B cable
    • Clamshell carrying case
